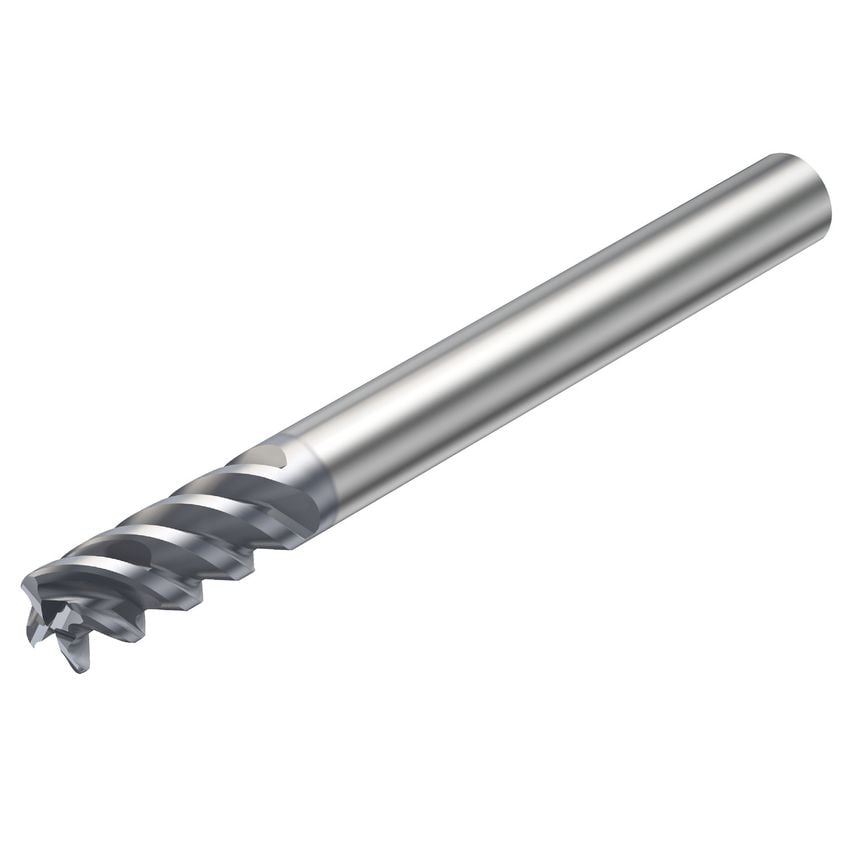

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Corner Radius | 4mm |
| CoroPak | 3.1 |
| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| Cutting Diameter | 16mm |
| Weight | 0.34kg |
| Rotational Speed Maximum | 80000 1/min |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Connection Diameter | 16mm |
| Grade | 1620 |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Usable Length | 32mm |
| Maximum Cutting Depth | 1.26in |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant | Without Coolant |
| Through Hole Function Property | Yes |
| Functional Length | 115mm |
| Finish/Coating | TiAlN |
| MFR Part No. | 11554723 |
| Coating Type | TiAlN |
| Product Type | Solid Carbide Endmill |
| Maximum Depth of Cut | 32mm |
