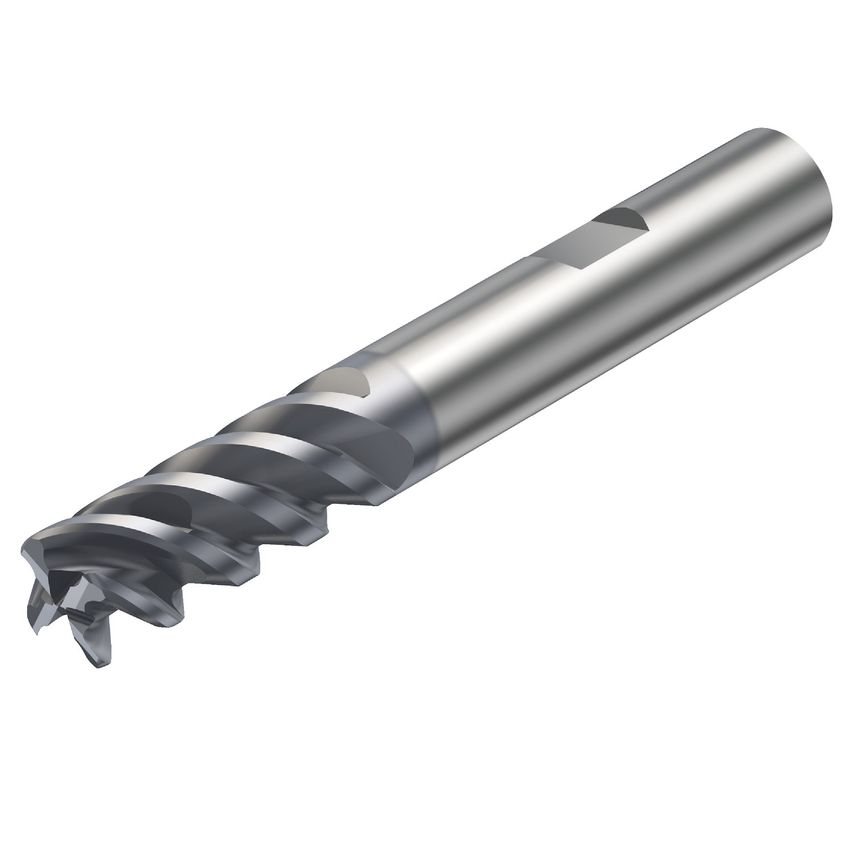

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Product Type | Solid Carbide Endmill |
| Coolant Entry Style | Without Coolant |
| Shank Type | Weldon |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Basic Standard Group | DIN 6527 L |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 22mm |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Standards Met | DIN 6527 L |
| CoroPak | 3.1 |
| Cutting Diameter | 10mm |
| Corner Radius | 2mm |
| Coating Type | TiAlN |
| MFR Part No. | 11557641 |
| Grade | 1630 |
| Usable Length | 22mm |
| Functional Length | 72mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 22mm |
| Connection Diameter | 22mm |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
