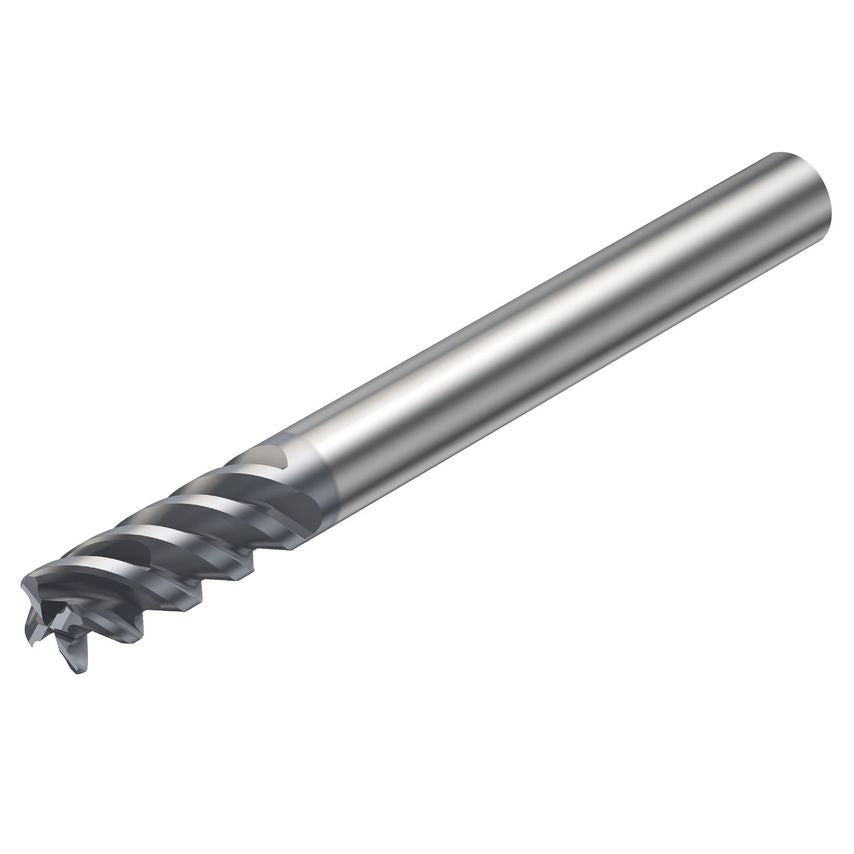

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1630 |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Coating Type | TiAlN |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| MFR Part No. | 11557416 |
| Maximum Depth of Cut | 22mm |
| Maximum Cutting Depth | 22mm |
| Standards Met | COROMANT |
| Weight | 0.12kg |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | Coromant |
| Shank Type | Cylindrical |
| CoroPak | 3.1 |
| Finish/Coating | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Corner Radius | 2mm |
| Connection Diameter | 22mm |
| Usable Length | 22mm |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 100mm |
| Product Type | Solid Carbide Endmill |
| Cutting Diameter | 10mm |
