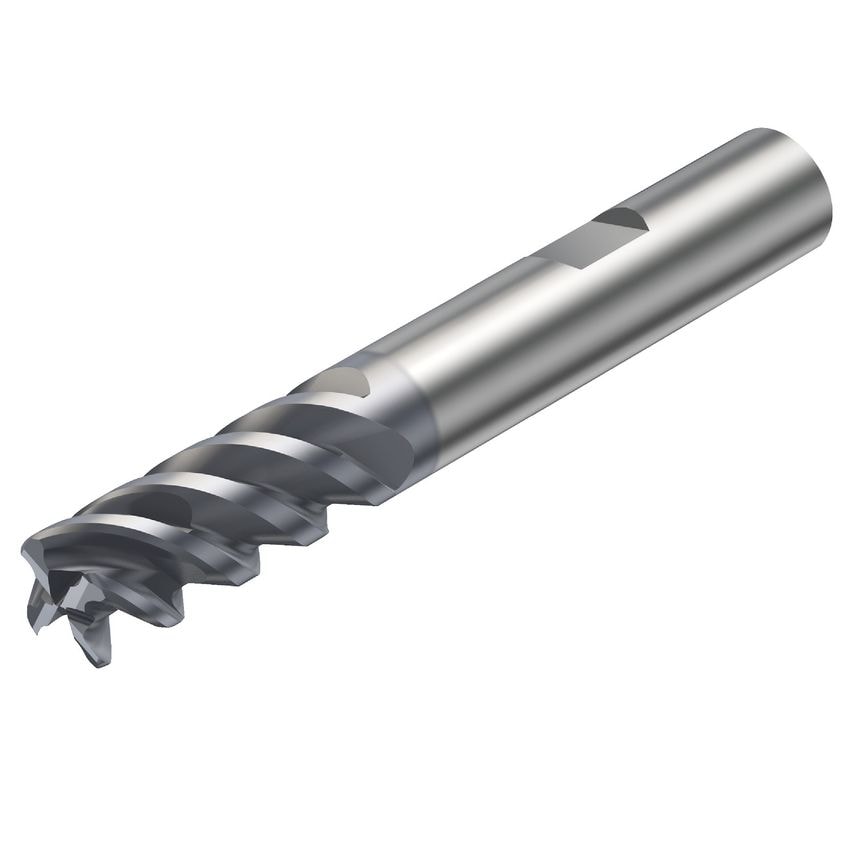

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 3mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | DIN 6527 L |
| Shank Type | Weldon |
| CoroPak | 4.1 |
| Cutting Diameter | 12mm |
| Weight | 0.13kg |
| Standards Met | DIN 6527 L |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 26mm |
| MFR Part No. | 11769575 |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | TiAlN |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | Yes |
| Connection Diameter | 32mm |
| Functional Length | 83mm |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 26mm |
| Product Type | Solid Carbide Endmill |
| Coating Type | TiAlN |
| Grade | 1620 |
| Maximum Cutting Depth | 26mm |
