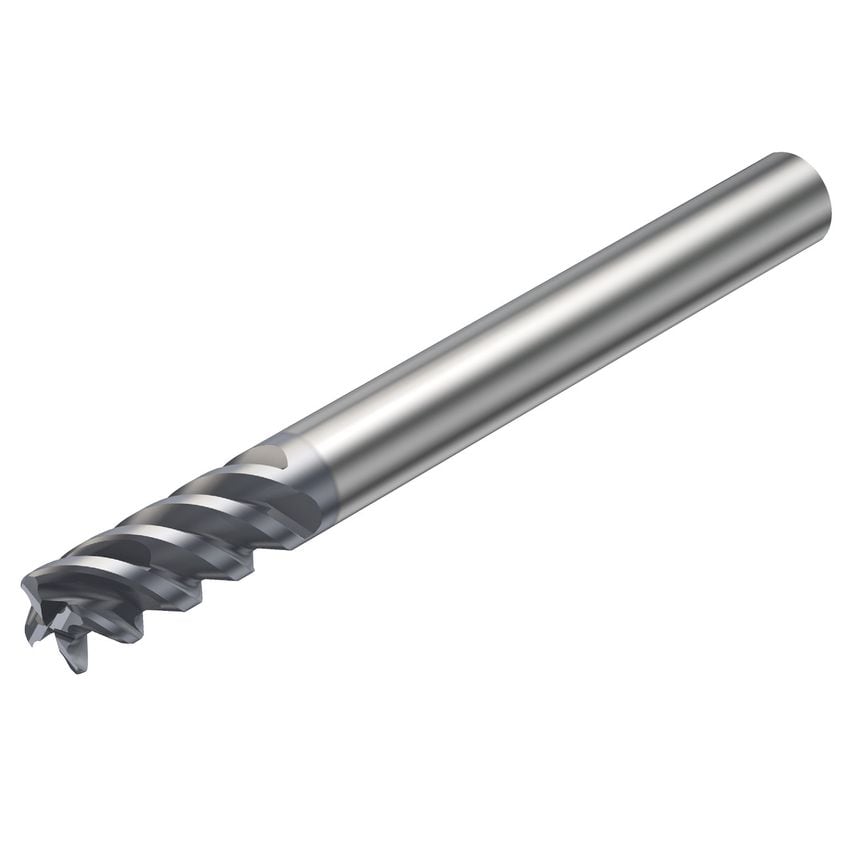

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 3.1 |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Finish/Coating | TiAlN |
| Maximum Depth of Cut | 26mm |
| MFR Part No. | 11554513 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 26mm |
| Cutting Diameter | 14mm |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
| Corner Radius | 3mm |
| Connection Diameter | 40mm |
| Shank Type | Cylindrical |
| Coating Type | TiAlN |
| Functional Length | 104mm |
| Product Type | Solid Carbide Endmill |
| Grade | 1620 |
| Weight | 231g |
| Material | Solid Carbide |
| Standards Met | COROMANT |
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| Maximum Cutting Depth | 26mm |
