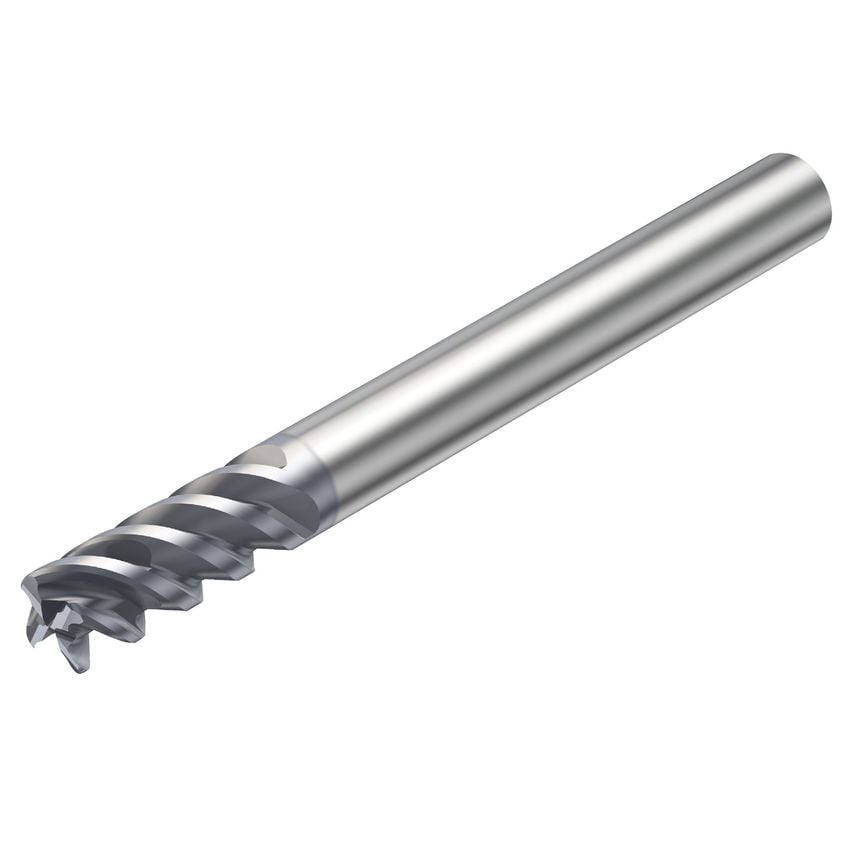

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Weight | 0.12kg |
| Product Type | Solid Carbide Endmill |
| Shank Type | Cylindrical |
| Usable Length | 22mm |
| Basic Standard Group | Coromant |
| Grade | 1620 |
| Material | Solid Carbide |
| Maximum Cutting Depth | 0.87in |
| CoroPak | 3.1 |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 11554690 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 22mm |
| Cutting Diameter | 10mm |
| Coating Type | TiAlN |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Standards Met | COROMANT |
| Functional Length | 100mm |
| Connection Diameter | 10mm |
| Coolant Entry Style | Without Coolant | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
| Finish/Coating | TiAlN |
| Corner Radius | 2mm |
