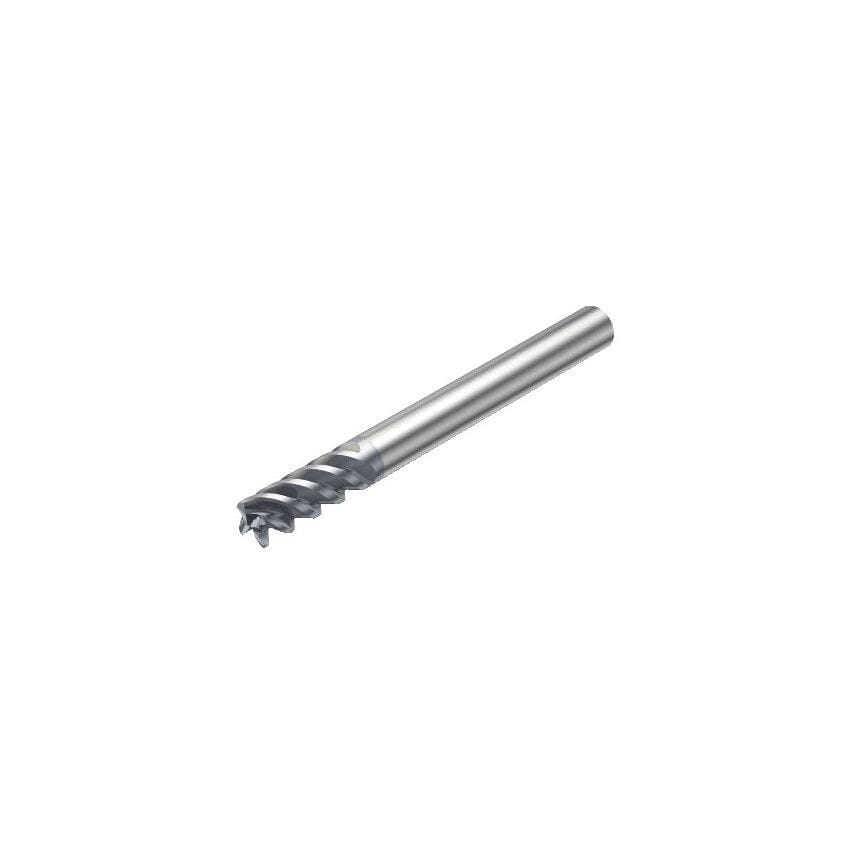

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 12301866 |
| Standards Met | DIN 6527 L |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 L |
| Maximum Ramping Angle | 5\u00b0 |
| Product Type | Solid Carbide Endmill |
| Grade | 1620 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 19mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 19mm |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Coolant Entry Style | Without Coolant |
| CoroPak | 8.1 |
| Connection Diameter | 8mm |
| Shank Type | Cylindrical |
| Finish/Coating | TiAlN |
| Cutting Diameter | 8mm |
| Center Cutting Capability | Yes |
| Functional Length | 63mm |
| Rotational Speed Maximum | 80000 1/min |
| Usable Length | 25mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 0.5mm |
