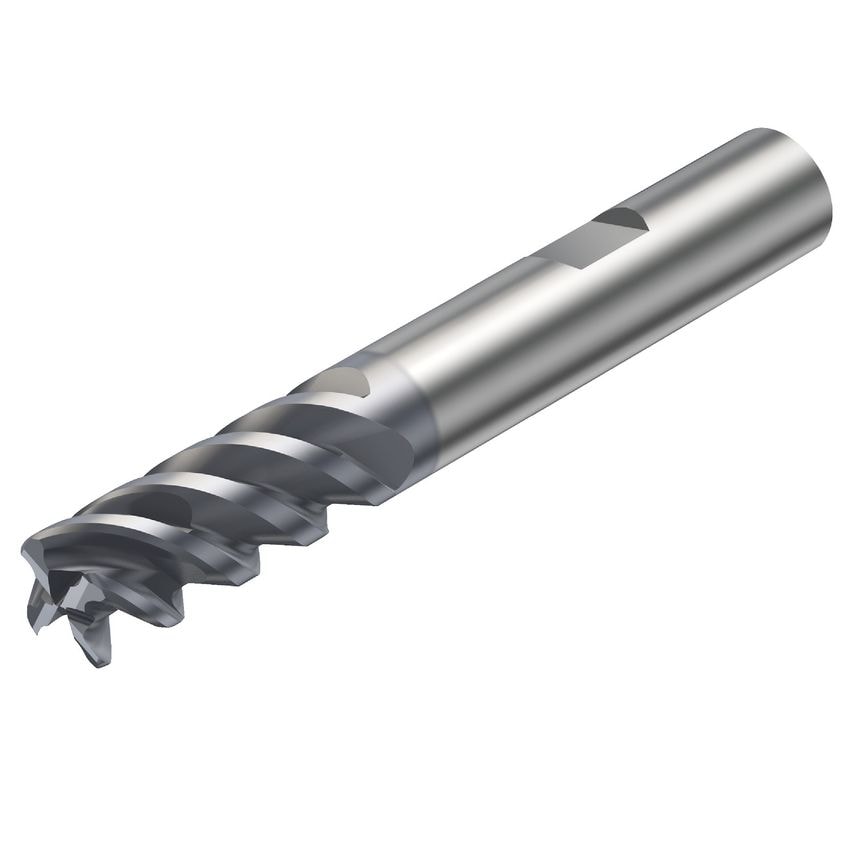

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

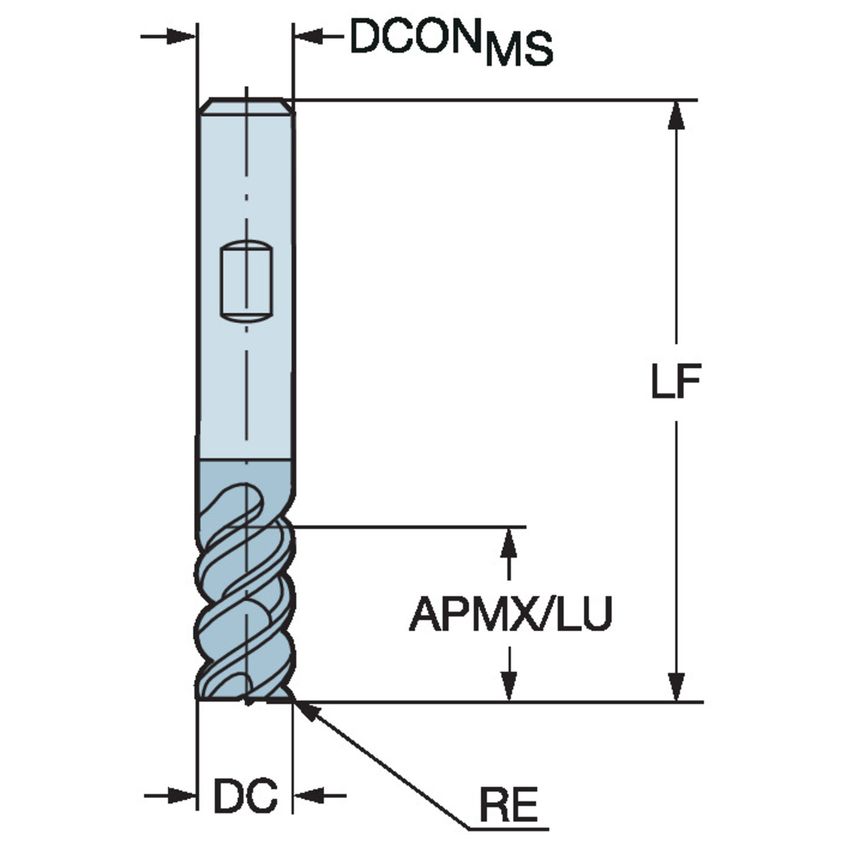

| Material | Solid Carbide |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 22mm |
| Cutting Diameter | 10mm |
| Through Hole Function Property | Yes |
| CoroPak | 4.1 |
| Shank Type | Weldon |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 22mm |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 2mm |
| Product Type | Solid Carbide Endmill |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 11769564 |
| Coating Type | TiAlN |
| Functional Length | 72mm |
| Finish/Coating | TiAlN |
| Connection Diameter | 22mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Basic Standard Group | DIN 6527 L |
| Grade | 1620 |
| Usable Length | 22mm |
