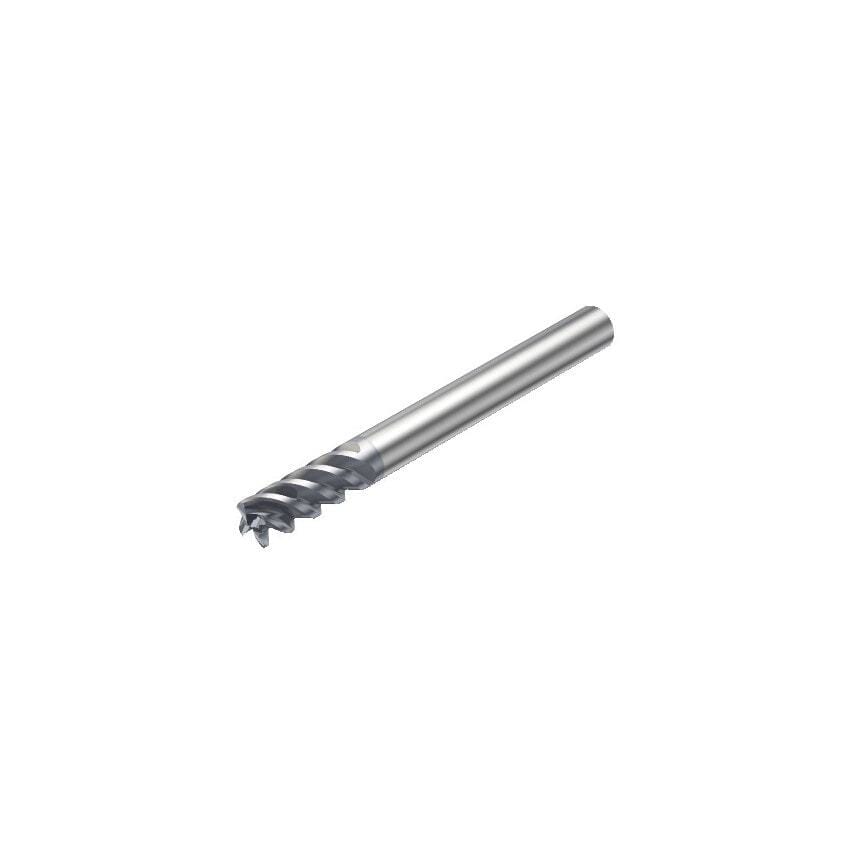

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 22mm |
| Standards Met | COROMANT |
| Coating Type | TiAlN |
| MFR Part No. | 12078566 |
| Corner Radius | 2.5mm |
| Shank Type | Cylindrical |
| Weight | 0.12kg |
| Coating Process Type | PVD |
| Product Type | Solid Carbide Endmill |
| Coolant Entry Style | Without Coolant |
| Usable Length | 42mm |
| Functional Length | 100mm |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 10mm |
| Maximum Cutting Depth | 22mm |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Grade | 1620 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Cutting Diameter | 10mm |
| CoroPak | 5.2 |
| Unit Measured | Metric |
