£17.49
Loading...

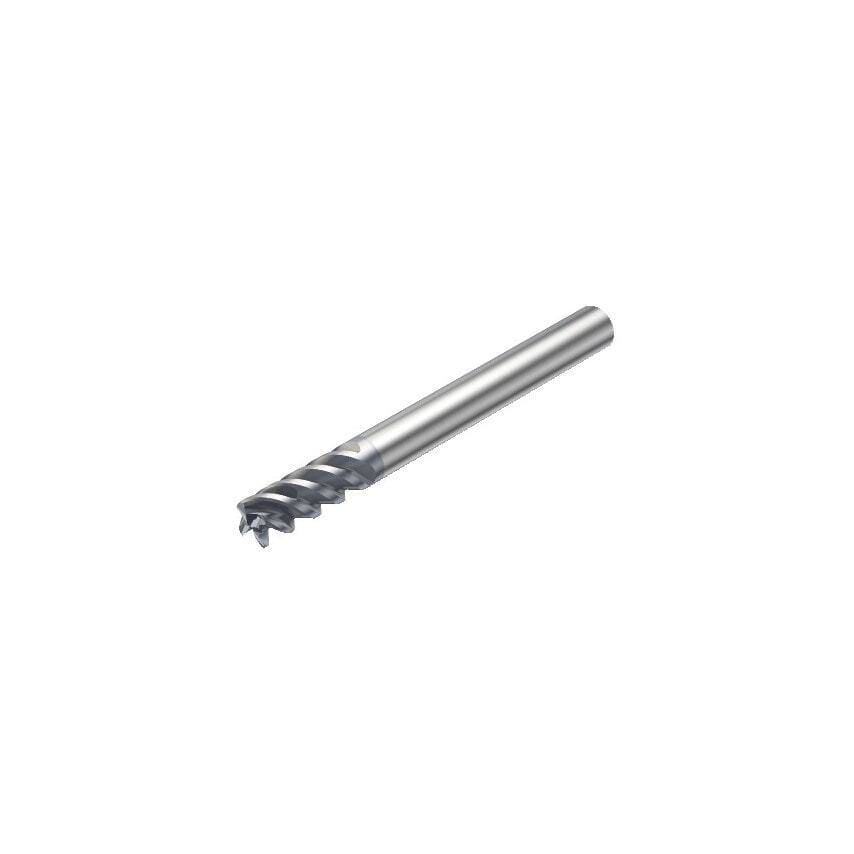

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Connection Diameter | 63mm |
| Basic Standard Group | Coromant |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Grade | 1620 |
| Maximum Ramping Angle | 5\u00b0 |
| Finish/Coating | TiAlN |
| MFR Part No. | 12078640 |
| Functional Length | 145mm |
| Center Cutting Capability | Yes |
| Usable Length | 80mm |
| CoroPak | 5.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 20mm |
| Maximum Cutting Depth | 44mm |
| Maximum Depth of Cut | 44mm |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| Product Type | Solid Carbide Endmill |
| Weight | 598g |
| Through Hole Function Property | Yes |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Shank Type | Cylindrical |
| Corner Radius | 2.5mm |
| Unit Measured | Metric |
