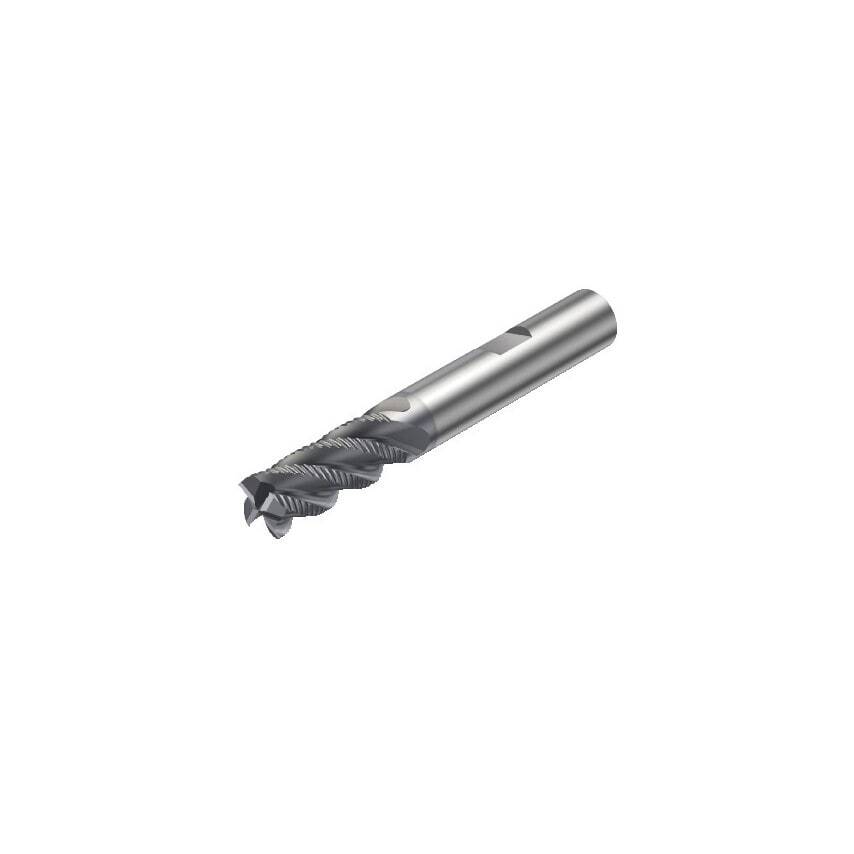

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 92mm |
| Maximum Depth of Cut | 32mm |
| Cutting Diameter | 18mm |
| CoroPak | 12.2 |
| Coolant Entry Style | Without Coolant |
| Material | Carbide |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 L |
| Milling Application | Roughing |
| Coating Process Type | PVD |
| MFR Part No. | 26259866 |
| Maximum Ramping Angle | 5\u00b0 |
| Finish/Coating | AlCrN |
| Center Cutting Capability | Yes |
| Basic Standard Group | DIN 6527 L |
| Rotational Speed Maximum | 18700 1/min |
| Connection Diameter | 63mm |
| Weight | 0.31kg |
| Coating Type | AlCrN |
| Grade | 1640 |
| Through Hole Function Property | Yes |
| Usable Length | 32mm |
| Maximum Cutting Depth | 32mm |
