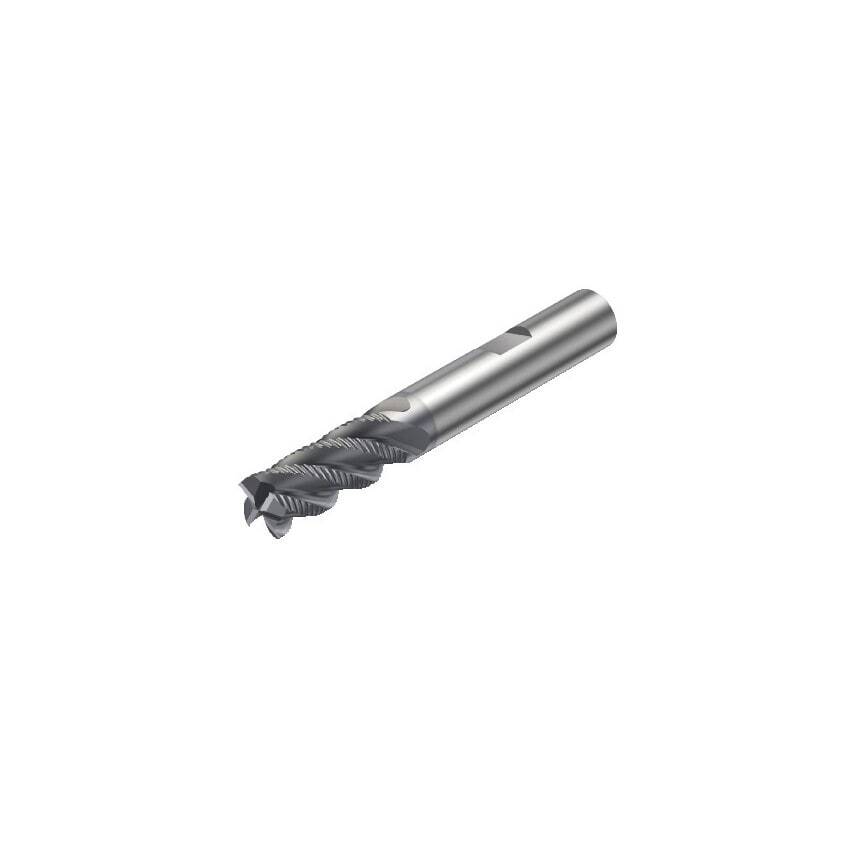

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 6527 L |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 16mm |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 32mm |
| Weight | 248.9g |
| MFR Part No. | 26259865 |
| Finish/Coating | AlCrN |
| Cutting Diameter | 16mm |
| Rotational Speed Maximum | 22800 1/min |
| Standards Met | DIN 6527 L |
| Functional Length | 92mm |
| Usable Length | 32mm |
| Maximum Cutting Depth | 32mm |
| CoroPak | 12.2 |
| Milling Application | Roughing |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Grade | 1640 |
| Material | Carbide |
| Unit Measured | Metric |
| Maximum Ramping Angle | 5\u00b0 |
