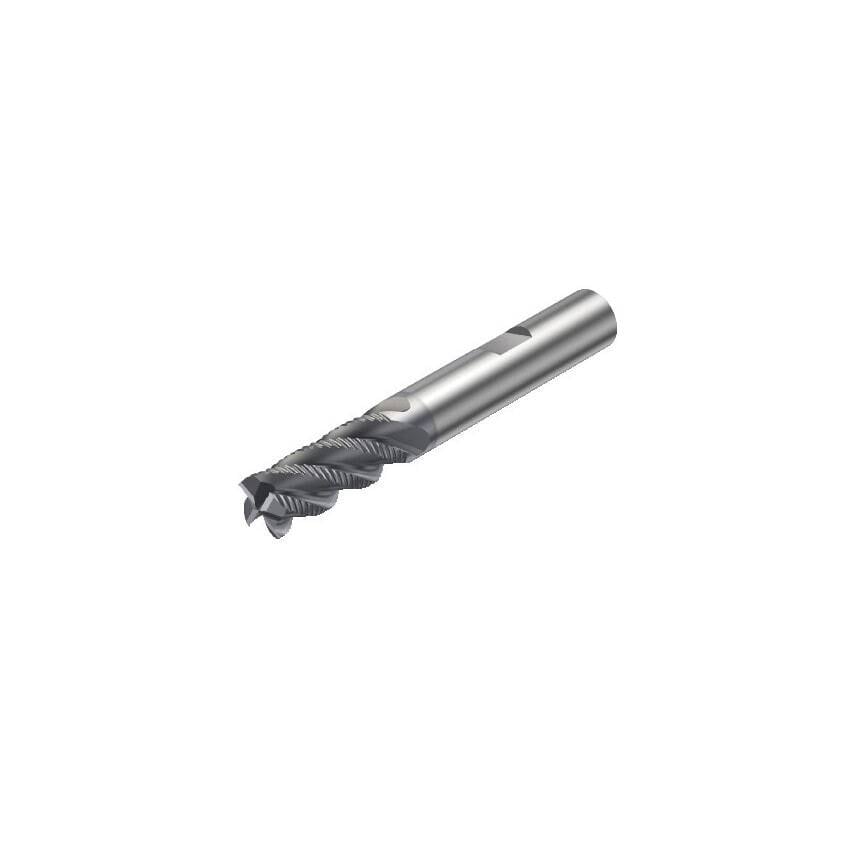

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Standards Met | DIN 6527 L |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Material | Solid Carbide |
| Functional Length | 83mm |
| Finish/Coating | AlCrN |
| MFR Part No. | 26259864 |
| Maximum Cutting Depth | 26mm |
| Maximum Depth of Cut | 26mm |
| Cutting Diameter | 14mm |
| Maximum Ramping Angle | 5\u00b0 |
| Basic Standard Group | DIN 6527 L |
| Milling Application | Roughing |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Weight | 0.18kg |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 40mm |
| Rotational Speed Maximum | 33100 1/min |
| Grade | 1640 |
| Usable Length | 26mm |
