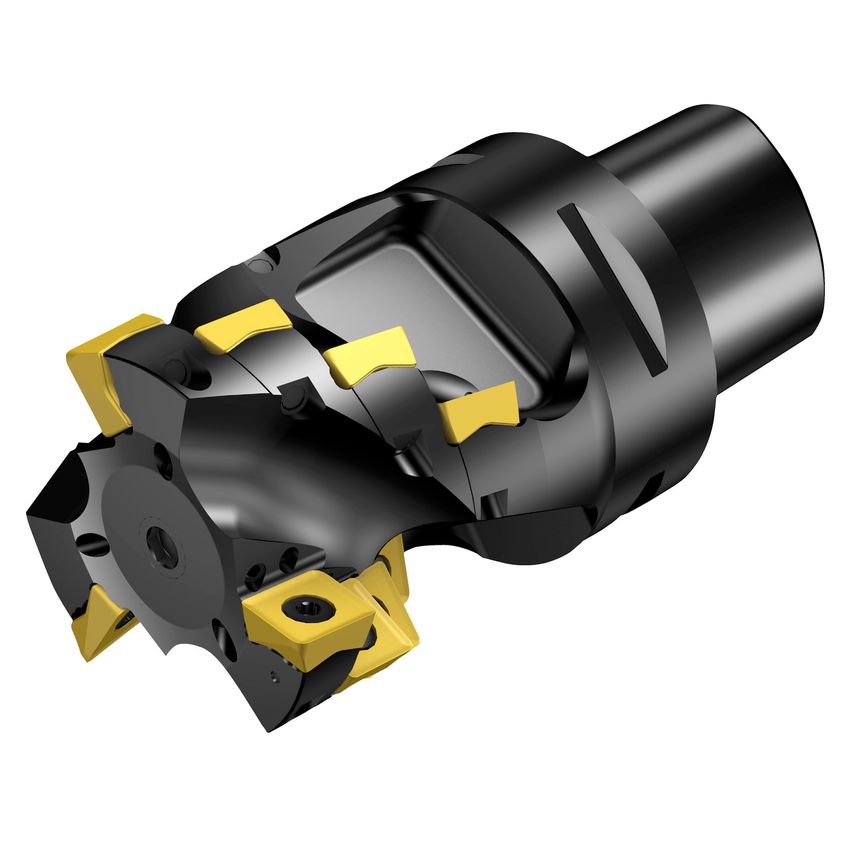

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Cutting Diameter | 15.84mm |
| Functional Length | 122mm |
| Weight | 2.84kg |
| Center Cutting Capability | 19.05 |
| MFR Part No. | 5723132 |
| Connection Diameter | 0.4mm |
| Body Material | Steel |
| Rotational Speed Maximum | 5000 1/min |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 0\u00b0 |
| Maximum Depth of Cut | 73mm |
| Functional Diameter | 44mm |
| Material | Steel |
| Maximum Cutting Depth | 73mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Standards Met | ISO26623-1 |
| Hand Preference | Right |
| CoroPak | 13.72 |
