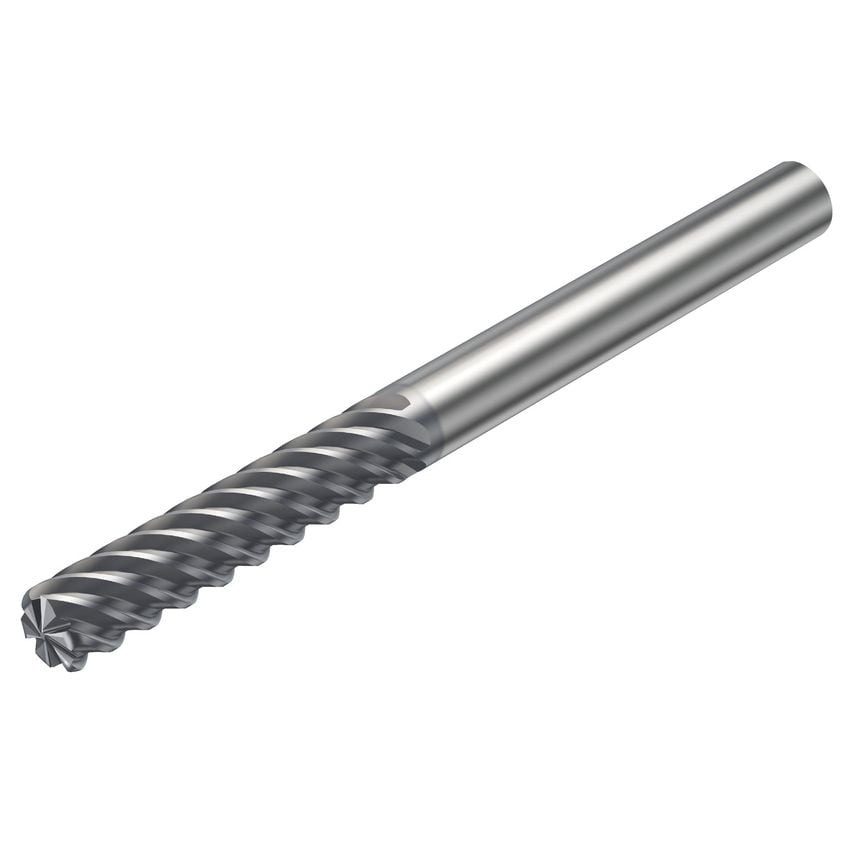

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | No |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
| Usable Length | 71.438mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 360.8g |
| CoroPak | 3.1 |
| Basic Standard Group | Coromant |
| Product Type | End Mills |
| Functional Length | 139.7mm |
| Connection Diameter | 24.5mm |
| Material | Solid Carbide |
| MFR Part No. | 5739280 |
| Cutting Diameter | 15.875mm |
| Milling Application | Finishing |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 3\u00b0 |
| Maximum Depth of Cut | 71.44mm |
| Maximum Cutting Depth | 71.44mm |
| Grade | 1620 |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Corner Radius | 3.175mm |
