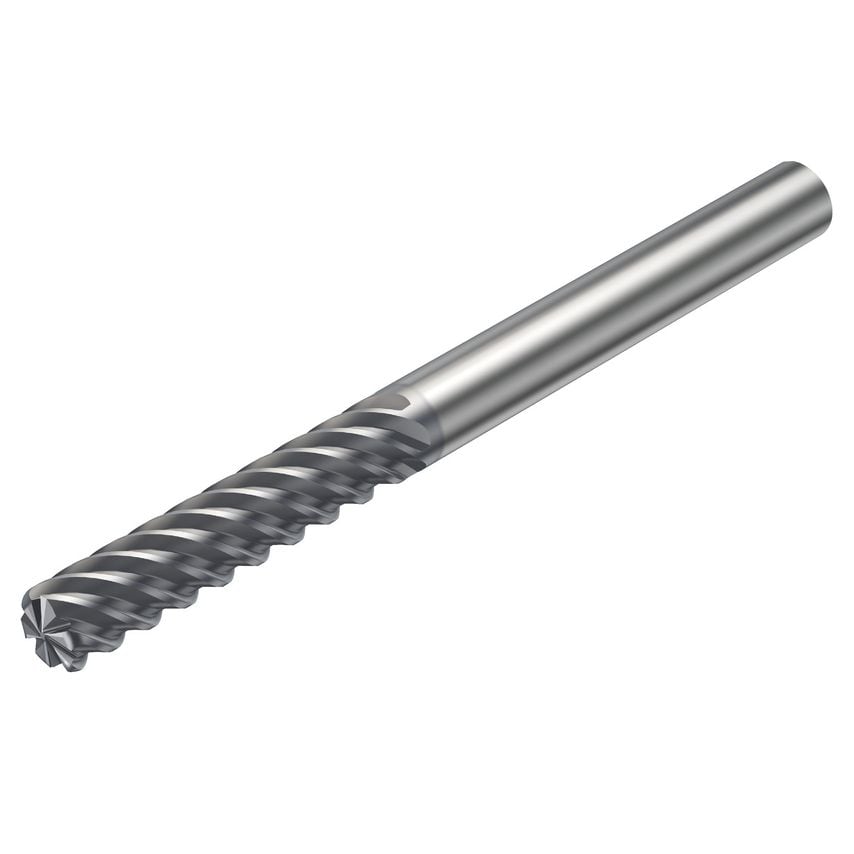

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 15.875mm |
| CoroPak | 3.1 |
| Through Hole Function Property | Yes |
| Product Type | End Mills |
| Unit Measured | Imperial |
| MFR Part No. | 5739297 |
| Grade | 1620 |
| Center Cutting Capability | No |
| Weight | 0.31kg |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 47.62mm |
| Maximum Cutting Depth | 47.62mm |
| Maximum Ramping Angle | 3\u00b0 |
| Basic Standard Group | Coromant |
| Functional Length | 114.3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 1.588mm |
| Milling Application | Finishing |
| Usable Length | 47.625mm |
| Connection Diameter | 24.5mm |
| Coolant Entry Style | Without Coolant |
