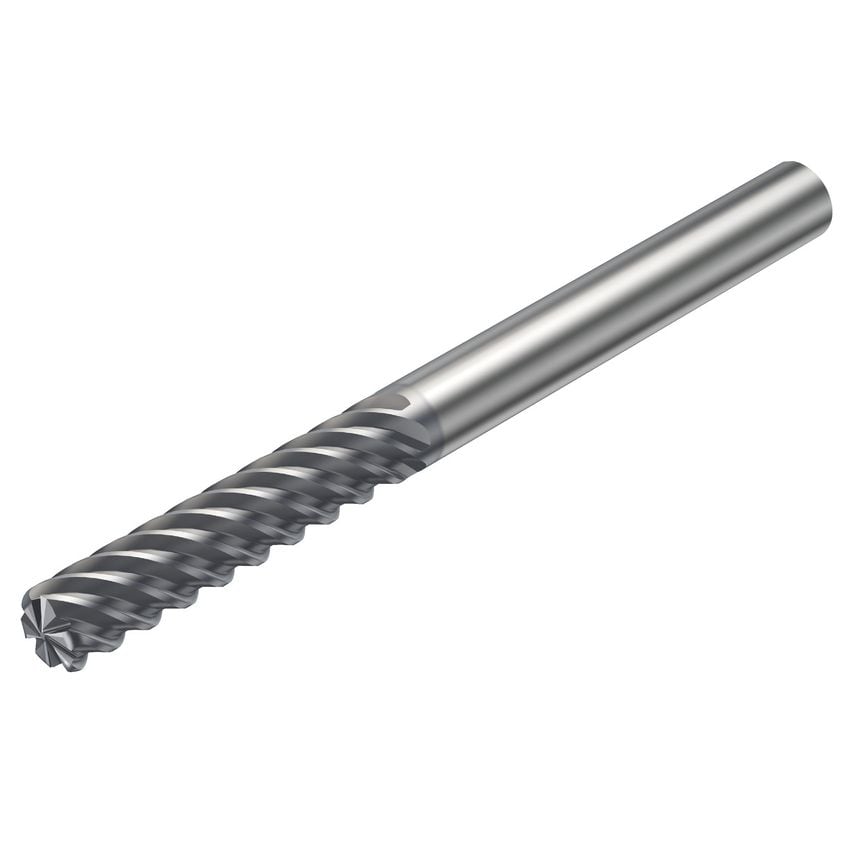

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Connection Diameter | 19.05mm |
| Center Cutting Capability | No |
| MFR Part No. | 5739284 |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 152.4mm |
| Through Hole Function Property | Yes |
| Corner Radius | 3.175mm |
| Weight | 0.58kg |
| Product Type | End Mills |
| Basic Standard Group | Coromant |
| Material | Solid Carbide |
| Maximum Depth of Cut | 85.72mm |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 85.72mm |
| Standards Met | COROMANT |
| Maximum Ramping Angle | 3\u00b0 |
| Usable Length | 85.725mm |
| Coating Type | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Milling Application | Finishing |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 19.05mm |
| Grade | 1620 |
| CoroPak | 3.1 |
