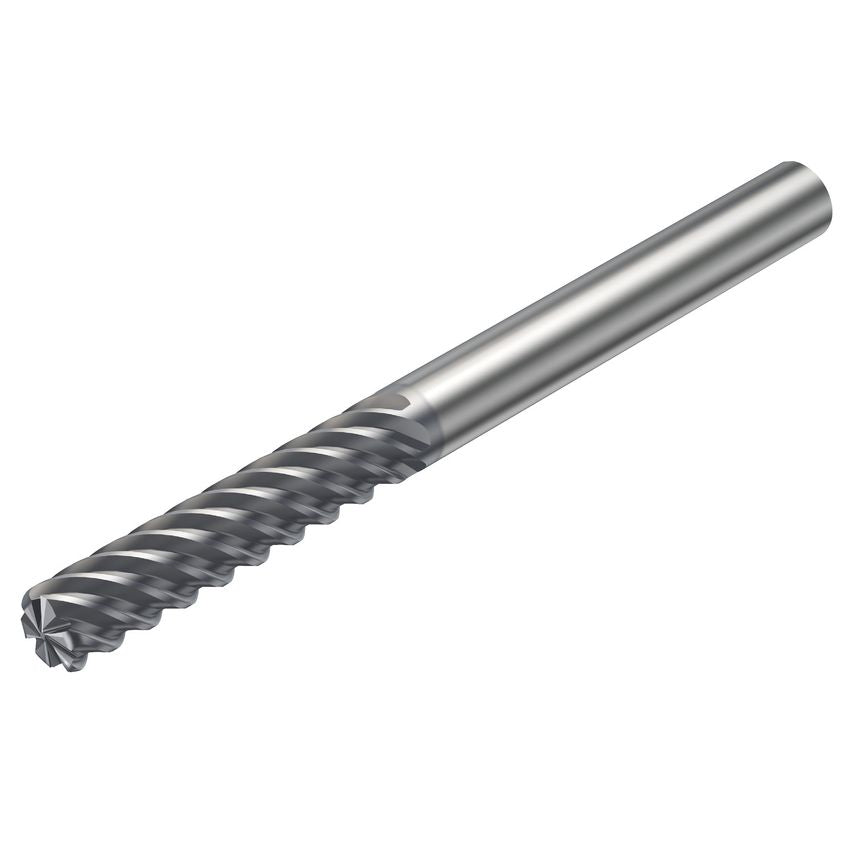

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 3\u00b0 |
| Material | Solid Carbide |
| Center Cutting Capability | No |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 57.15mm |
| Weight | 0.49kg |
| MFR Part No. | 5739282 |
| Cutting Diameter | 19.05mm |
| Maximum Cutting Depth | 57.15mm |
| Unit Measured | Imperial |
| CoroPak | 3.1 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Grade | 1620 |
| Rotational Speed Maximum | 80000 1/min |
| Milling Application | Finishing |
| Corner Radius | 1.588mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Functional Length | 127mm |
| Basic Standard Group | Coromant |
| Product Type | End Mills |
| Usable Length | 57.15mm |
| Connection Diameter | 38.1mm |
