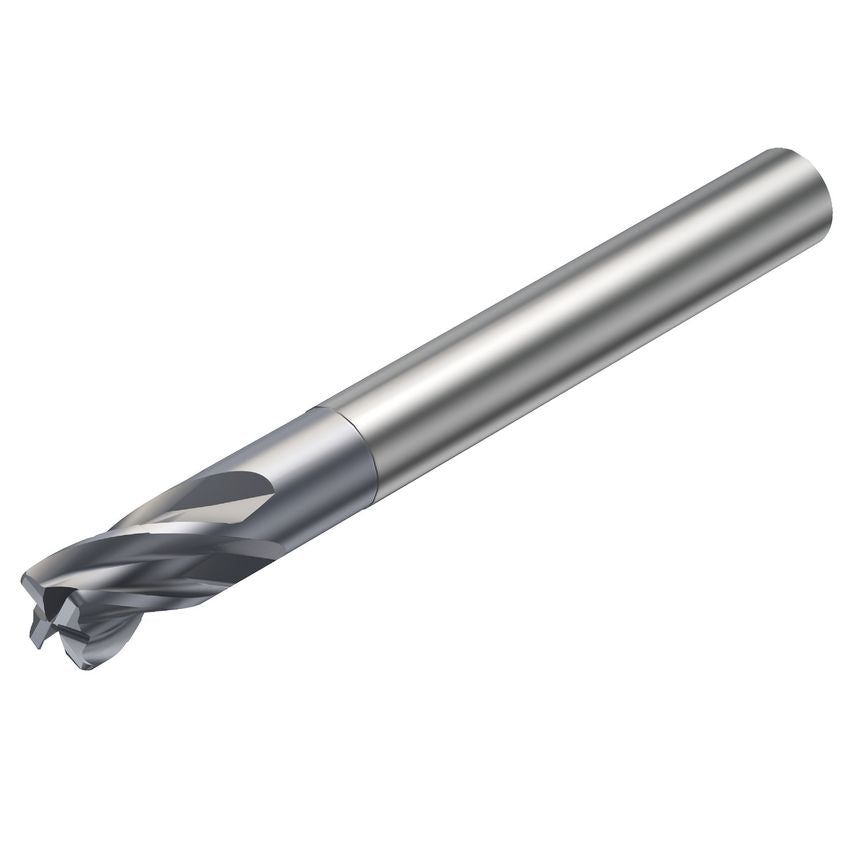

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

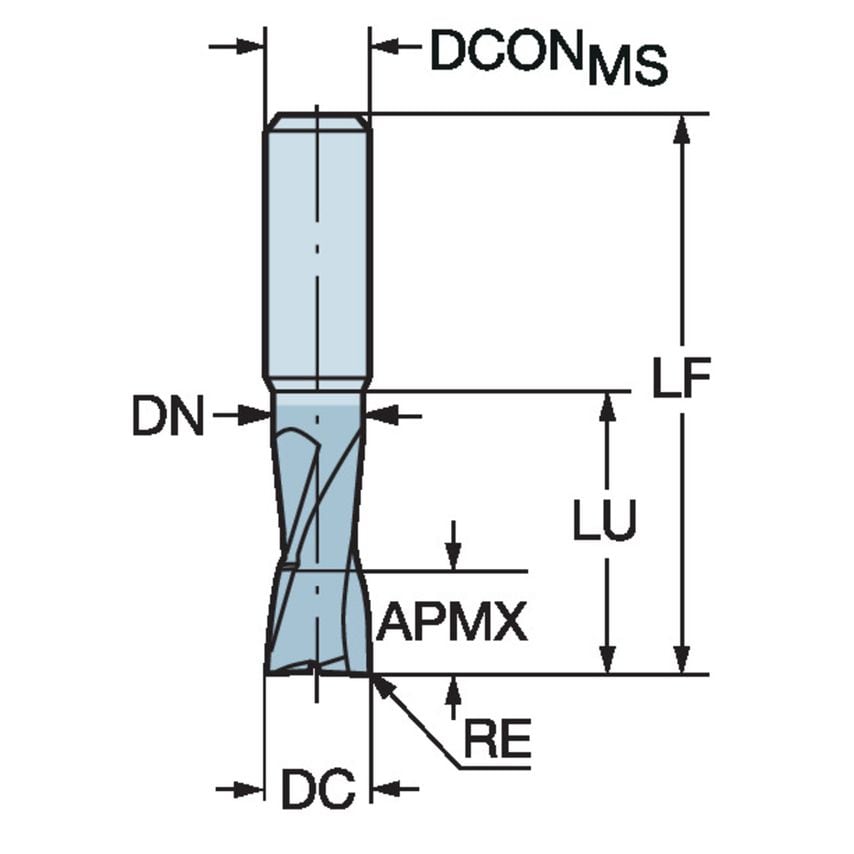

| Maximum Cutting Depth | 9.53mm |
| Usable Length | 31.75mm |
| Unit Measured | Imperial |
| Corner Radius | 1.588mm |
| Center Cutting Capability | Yes |
| MFR Part No. | 5739450 |
| Maximum Ramping Angle | 2\u00b0 |
| Coating Type | TiAlN |
| Cutting Diameter | 9.525mm |
| CoroPak | 7.1 |
| Grade | 1610 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 9.53mm |
| Rotational Speed Maximum | 80000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 88.9mm |
| Weight | 0.1kg |
| Basic Standard Group | Coromant |
| Connection Diameter | 25.4mm |
| Coating Process Type | PVD |
