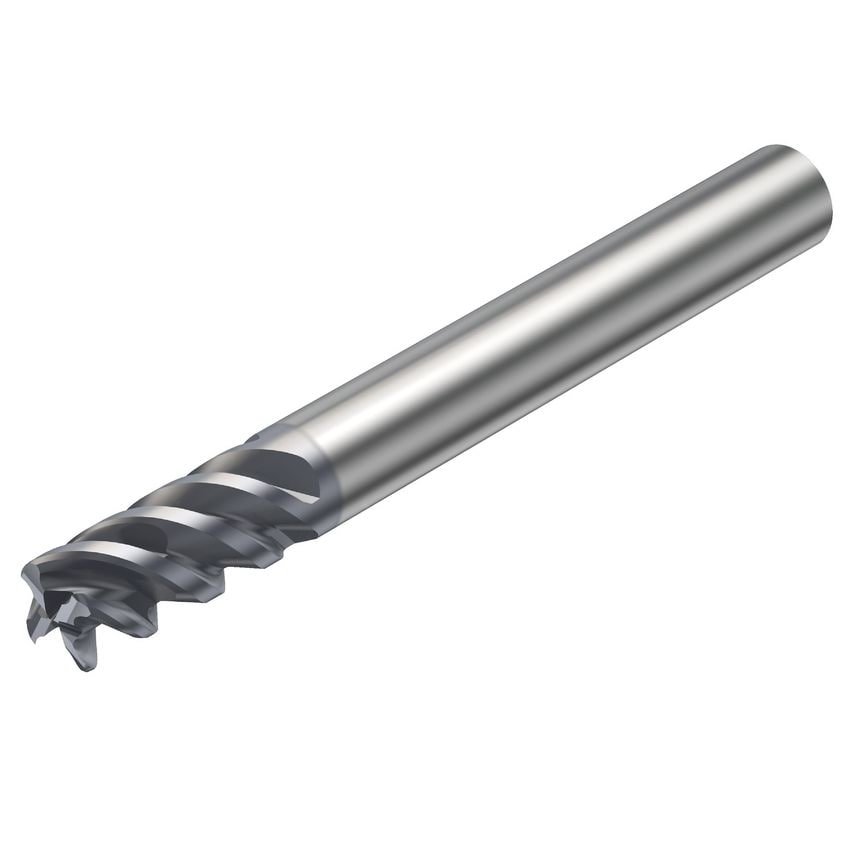

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| MFR Part No. | 5739475 |
| Connection Diameter | 10mm |
| Cutting Diameter | 6.35mm |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Maximum Cutting Depth | 12.7mm |
| Weight | 46g |
| Maximum Ramping Angle | 5\u00b0 |
| Product Type | Solid Carbide Endmill |
| Functional Length | 76.2mm |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Unit Measured | Imperial |
| Coolant Entry Style | Without Coolant |
| Standards Met | COROMANT |
| Usable Length | 12.7mm |
| Corner Radius | 0.794mm |
| Grade | 1620 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| CoroPak | 3.1 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 12.7mm |
