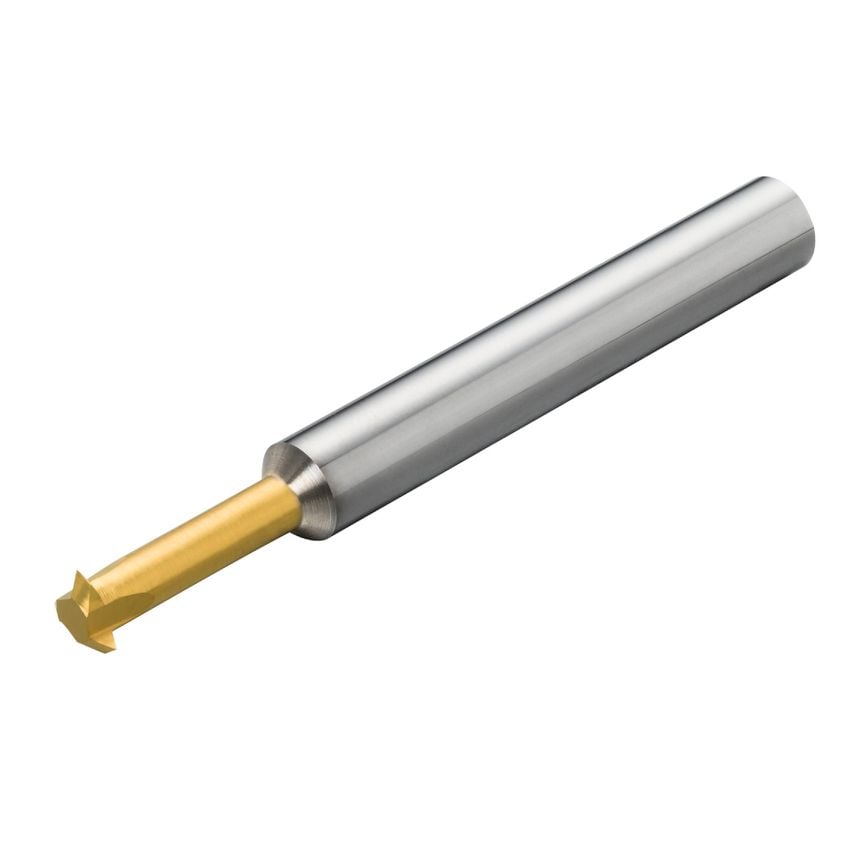

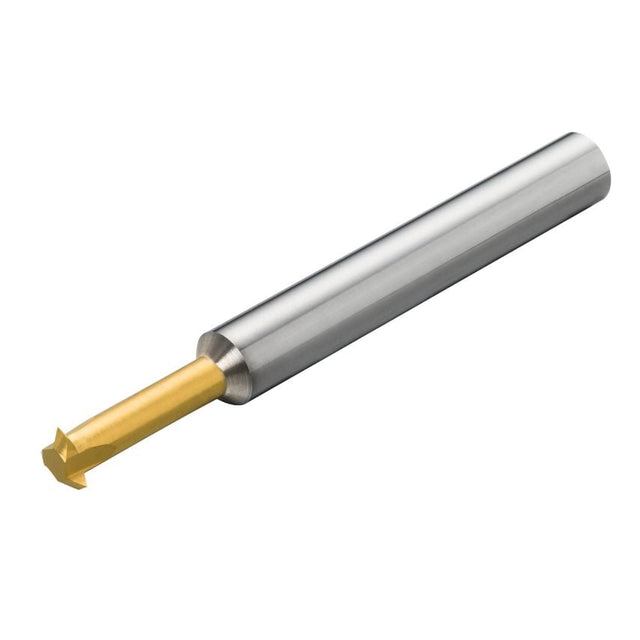

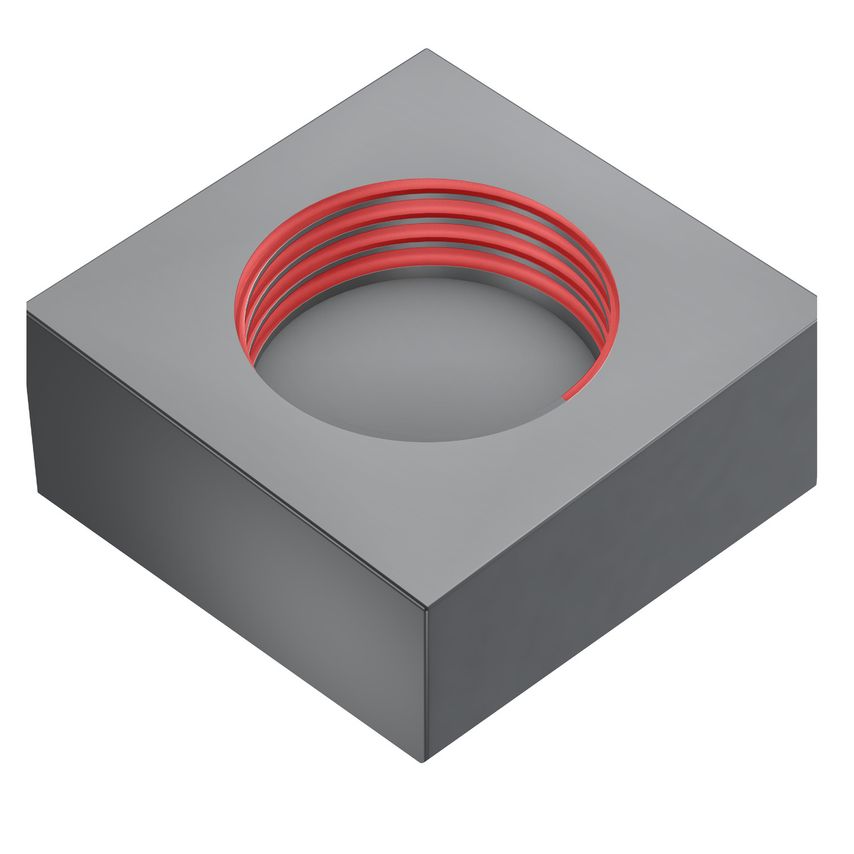

Product Range: CoroMill 326Tool Type: Thread millingVersatile and cost efficient, this miniature milling cutter benefits from three cutting edges for internal threading and chamfering. Use it in small holes, down to 6 mm (0.236 inch) as a complement to CoroMill 327, CoroMill 328 and CoroMill Plura.Features & Benefits- Internal threading and chamfering in small holes- Very high precision and low cutting forces- One grade for all materialsApplication- Internal thread milling- Chamfer milling- Hole diameters from 6 mm (0.236 inch)

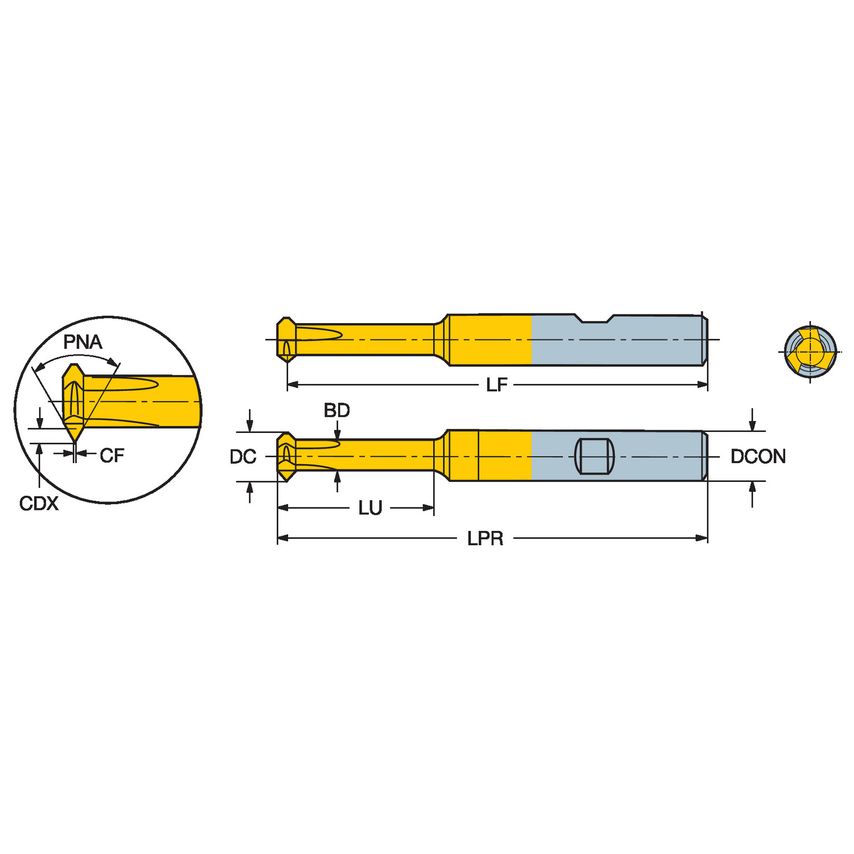

| Functional Length | 58mm |
| Thread Type | Internal |
| Basic Standard Group | Coromant |
| Connection Diameter | 10mm |
| Through Hole Function Property | Yes |
| Maximum Threads Per Inch | 50 |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Minimum Thread Pitch | 0.5mm |
| Coating Type | TiAlN+TiN |
| Minimum Threads Per Inch | 16 |
| Body Diameter | 0.14in |
| Thread Form Type | VP60 |
| CoroPak | 25 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 1.94mm |
| Usable Length | 15mm |
| Grade | 1025 |
| MFR Part No. | 6010149 |
| Maximum Depth of Cut | 1.94mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 63.5mm |
| Unit Measured | Imperial |
