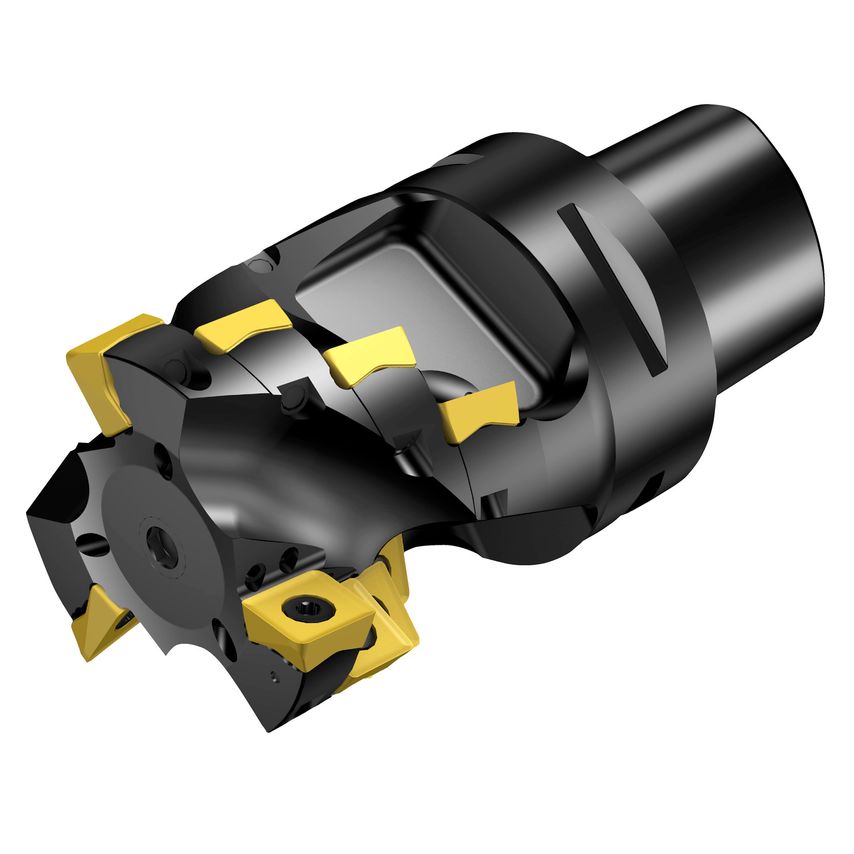

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant

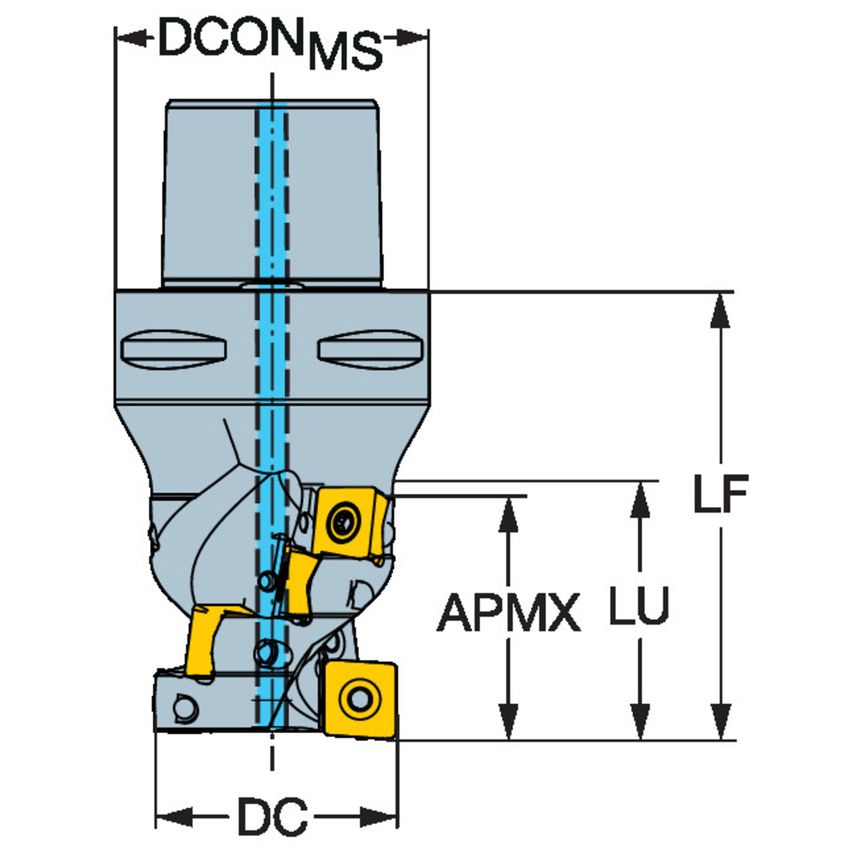

| Tool Cutting Edge Angle | 90\u00b0 |
| Functional Length | 150mm |
| Standards Met | ISO26623-1 |
| Usable Length | 107mm |
| Material | Steel |
| Connection Diameter | 0.38mm |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Unit Measured | Imperial |
| Maximum Cutting Depth | 105mm |
| MFR Part No. | 5723636 |
| Body Material | Steel |
| Weight | 2.42kg |
| Center Cutting Capability | 19.05 |
| CoroPak | 9.53 |
| Cutting Diameter | 80mm |
| Maximum Depth of Cut | 105mm |
| Functional Diameter | 44mm |
| Rotational Speed Maximum | 5000 1/min |
