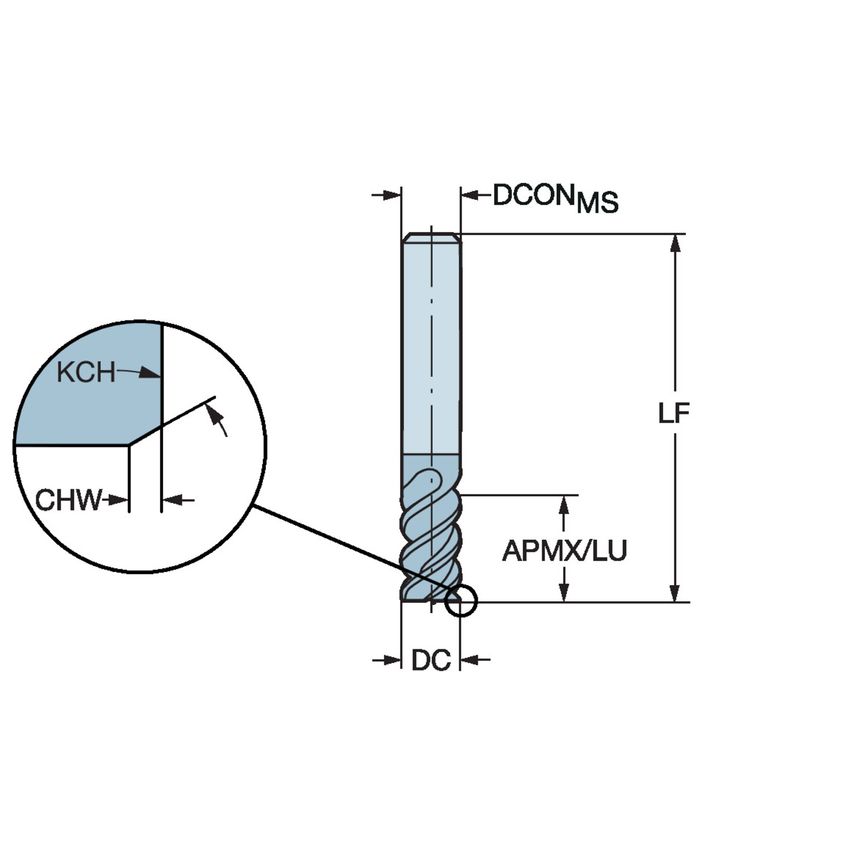

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 22mm |
| Grade | 1620 |
| Coating Process Type | PVD |
| Cutting Diameter | 10mm |
| Connection Diameter | 10mm |
| Maximum Ramping Angle | 3\u00b0 |
| Milling Application | Finishing |
| MFR Part No. | 5742792 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 22mm |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Product Type | End Mills |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 22mm |
| Coating Type | TiAlN |
| CoroPak | 3.1 |
| Standards Met | DIN 6527 L |
| Center Cutting Capability | No |
| Basic Standard Group | DIN 6527 L |
| Unit Measured | Metric |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 72mm |
