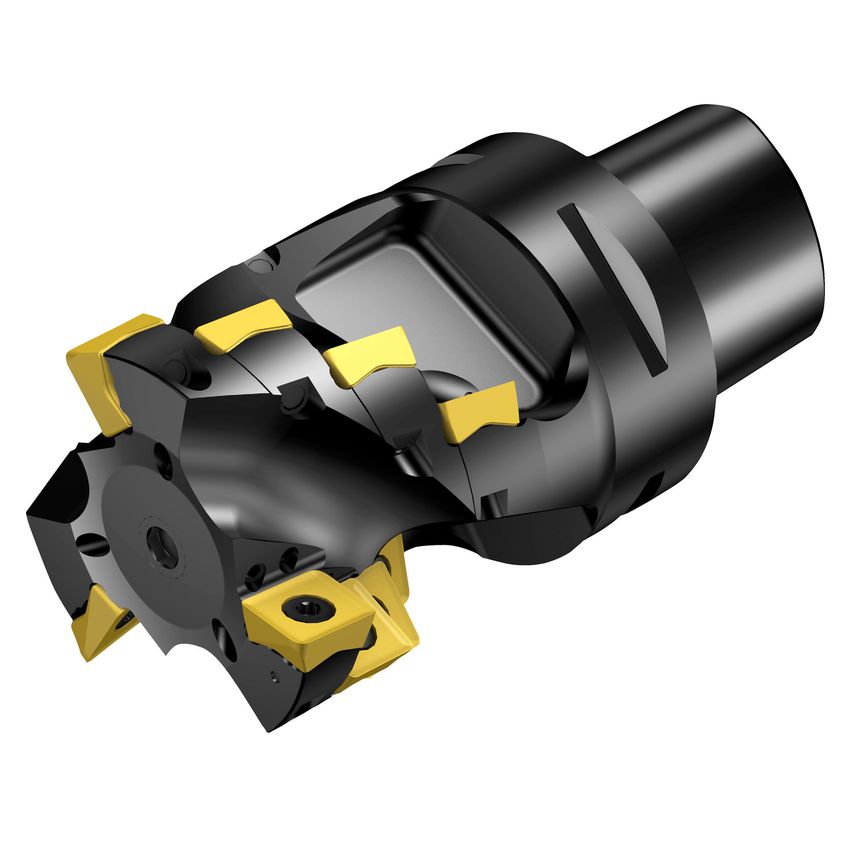

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant

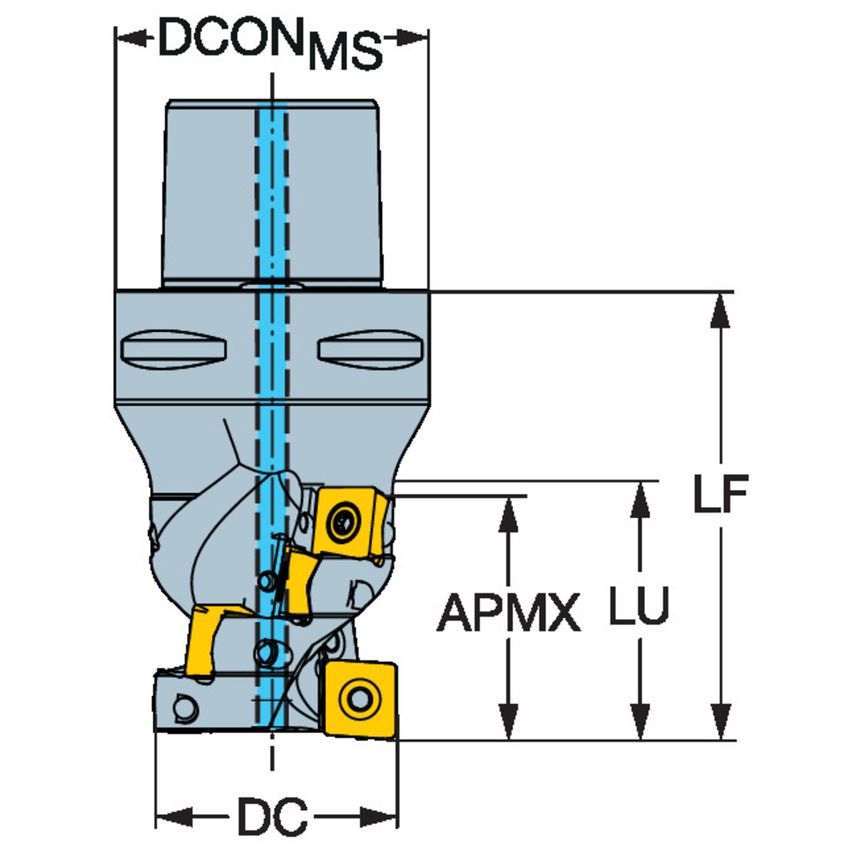

| Connection Diameter | 0.08mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Usable Length | 48mm |
| Maximum Ramping Angle | 0\u00b0 |
| Cutting Diameter | 65mm |
| Material | Steel |
| Unit Measured | Imperial |
| Standards Met | ISO26623-1 |
| Maximum Depth of Cut | 46mm |
| Hand Preference | Right |
| CoroPak | 11.5 |
| Weight | 1.44kg |
| MFR Part No. | 5723628 |
| Functional Length | 83mm |
| Maximum Cutting Depth | 46mm |
| Rotational Speed Maximum | 5000 1/min |
| Body Material | Steel |
| Functional Diameter | 44mm |
| Through Hole Function Property | Yes |
| Center Cutting Capability | 19.05 |
