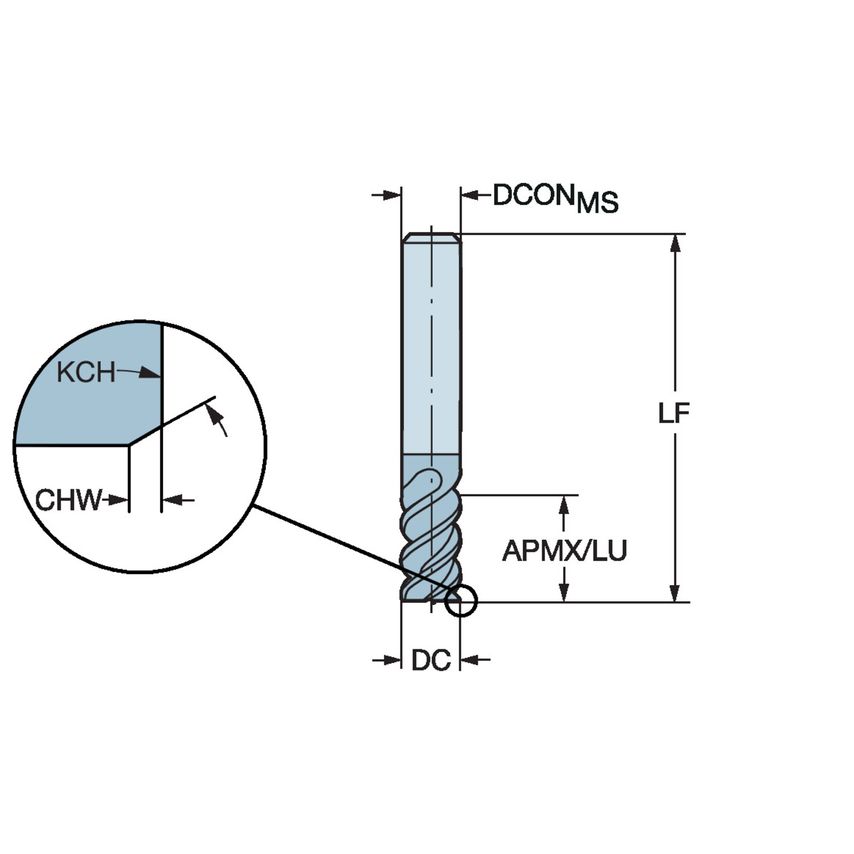

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | No |
| Milling Application | Finishing |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 13mm |
| Maximum Ramping Angle | 3\u00b0 |
| Grade | 1620 |
| Standards Met | DIN 6527 L |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 57mm |
| Cutting Diameter | 5mm |
| MFR Part No. | 5742819 |
| Connection Diameter | 14.42mm |
| Usable Length | 13mm |
| Maximum Depth of Cut | 13mm |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |
| Coating Process Type | PVD |
| Product Type | End Mills |
| Coating Type | TiAlN |
| CoroPak | 3.1 |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
