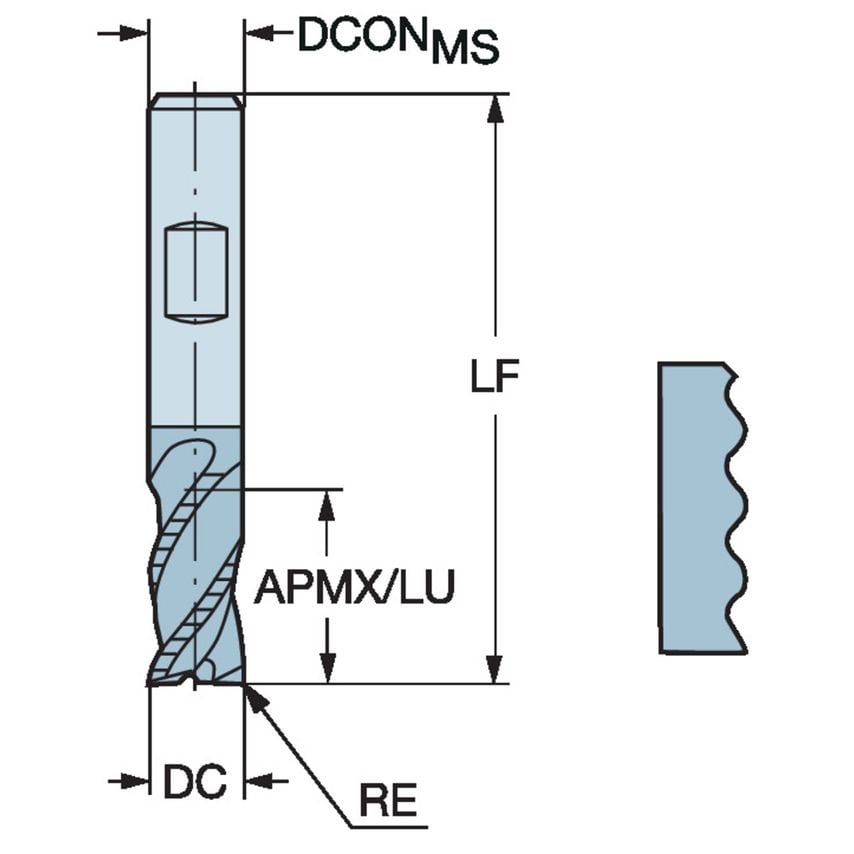

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlN |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| MFR Part No. | 5743259 |
| CoroPak | 3.2 |
| Coolant Entry Style | Without Coolant |
| Functional Length | 92mm |
| Weight | 0.24kg |
| Corner Radius | 0.4mm |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
| Connection Diameter | 50mm |
| Grade | 1640 |
| Maximum Cutting Depth | 32mm |
| Unit Measured | Metric |
| Maximum Ramping Angle | 5\u00b0 |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Usable Length | 32mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 32mm |
| Milling Application | Roughing |
| Cutting Diameter | 16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
