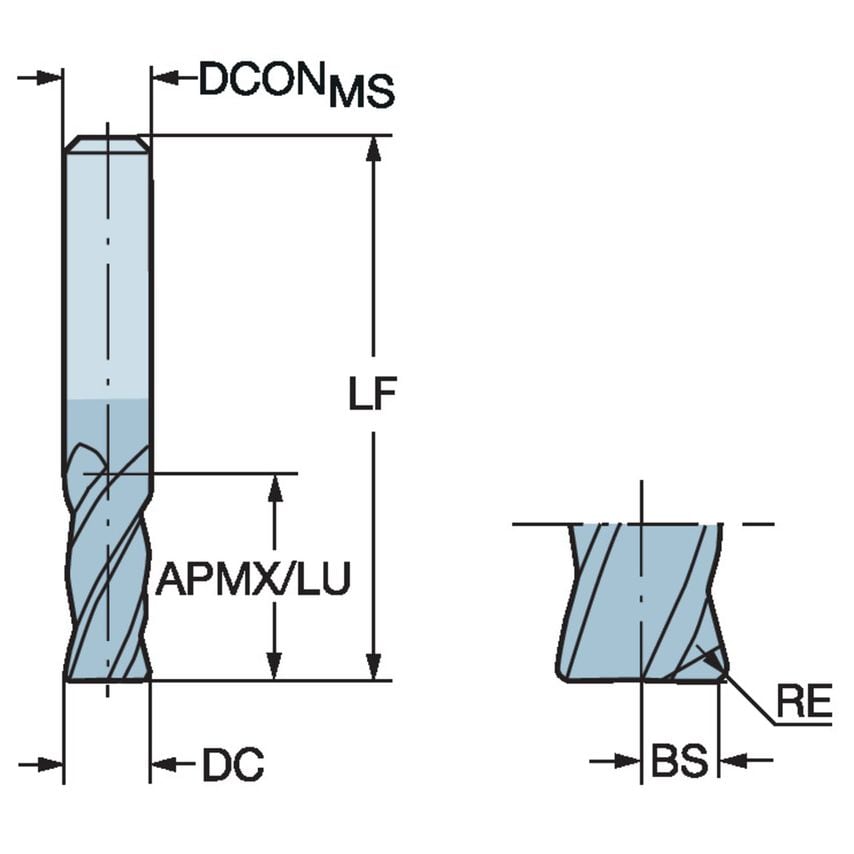

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| MFR Part No. | 5743234 |
| Maximum Depth of Cut | 8mm |
| Basic Standard Group | Coromant |
| Cutting Diameter | 4mm |
| Coating Type | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 14.55mm |
| Maximum Cutting Depth | 8mm |
| Grade | 1620 |
| CoroPak | 3.1 |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Functional Length | 54mm |
| Usable Length | 8mm |
