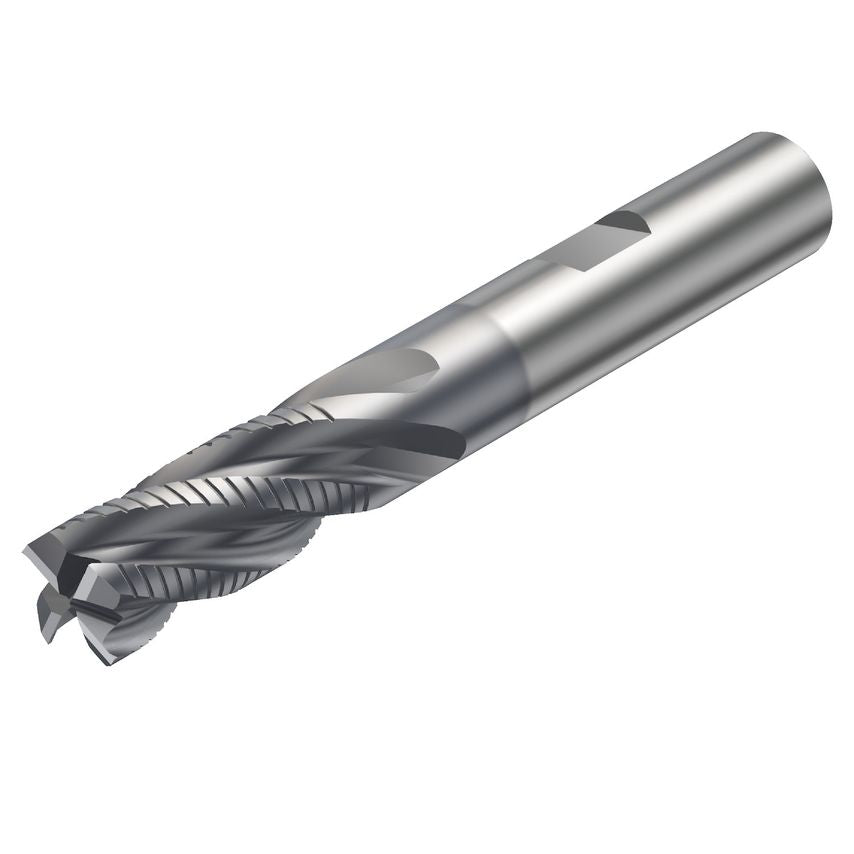

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 6mm |
| Coating Type | TiAlN |
| Connection Diameter | 6mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 13mm |
| CoroPak | 3.1 |
| Grade | 1620 |
| MFR Part No. | 5743292 |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 57mm |
| Coolant Entry Style | Without Coolant |
| Milling Application | Roughing |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Corner Radius | 0mm |
| Standards Met | DIN 6527 L |
| Basic Standard Group | DIN 6527 L |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Maximum Cutting Depth | 13mm |
| Maximum Depth of Cut | 13mm |
