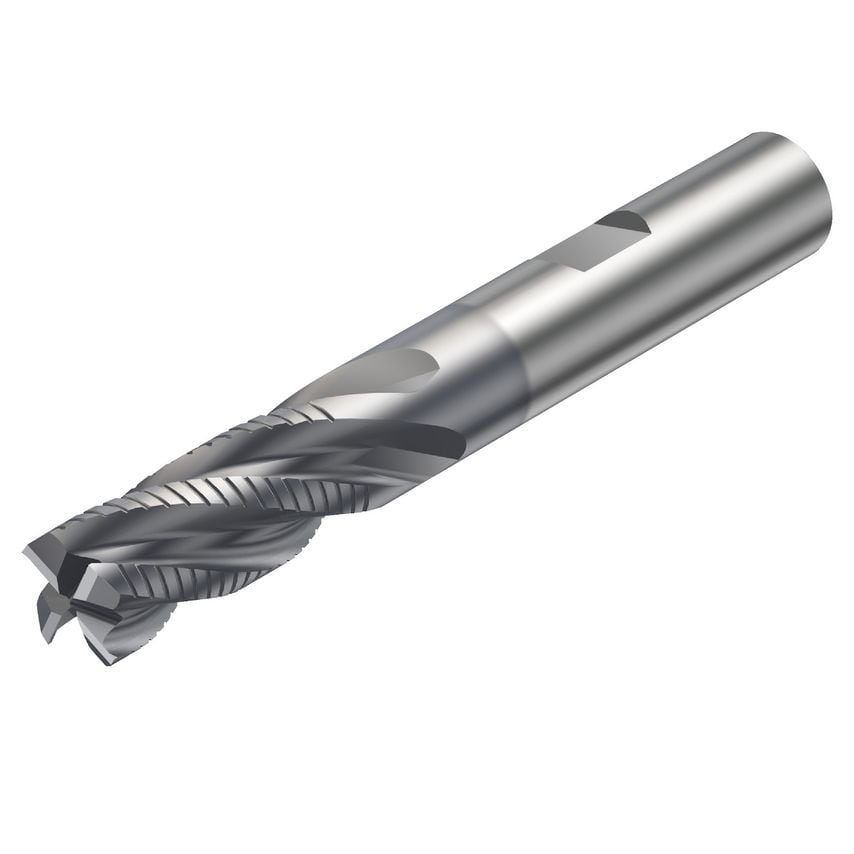

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Milling Application | Roughing |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Center Cutting Capability | Yes |
| Grade | 1620 |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 5743320 |

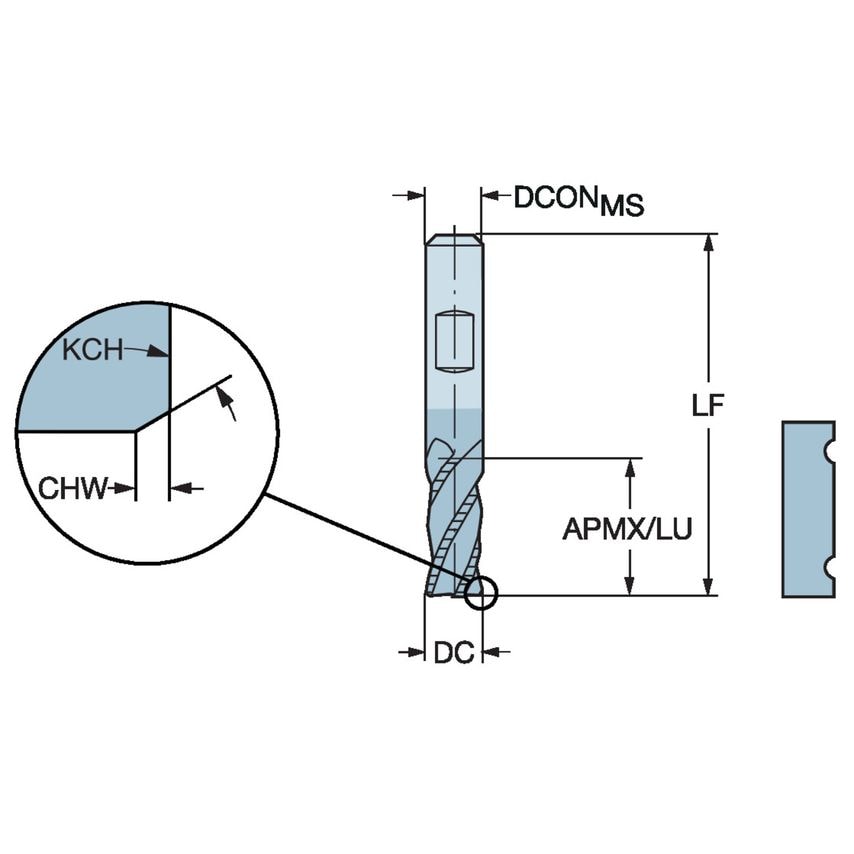

| Maximum Cutting Depth | 26mm |
| CoroPak | 3.1 |
| Cutting Diameter | 12mm |
| Functional Length | 83mm |
| Coating Type | TiAlN |
| Connection Diameter | 32mm |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
| Weight | 0.13kg |
| Usable Length | 26mm |
| Maximum Depth of Cut | 26mm |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
