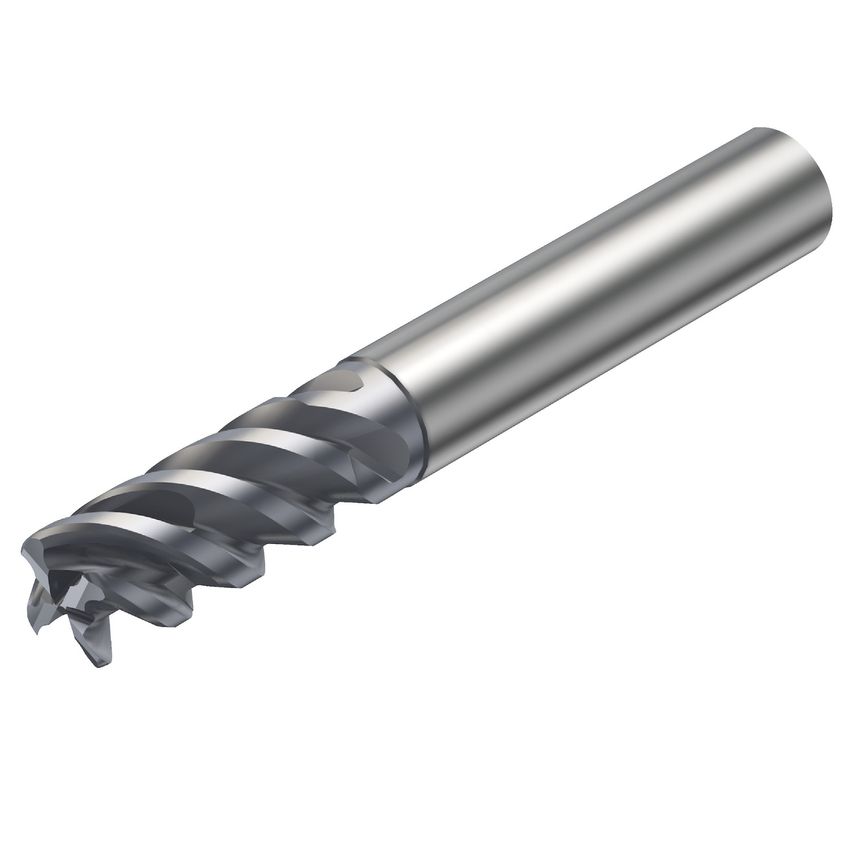

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 5743102 |
| Coating Type | TiAlN |
| Functional Length | 92mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Weight | 0.25kg |
| Grade | 1620 |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 8.1 |
| Through Hole Function Property | Yes |
| Cutting Diameter | 16mm |
| Product Type | Solid Carbide Endmill |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Connection Diameter | 16mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 6527 L |
| Material | Carbide |
| Corner Radius | 0.5mm |
| Shank Type | Cylindrical |
| Unit Measured | Metric |
| Maximum Depth of Cut | 32mm |
| Usable Length | 42mm |
| Maximum Cutting Depth | 32mm |
