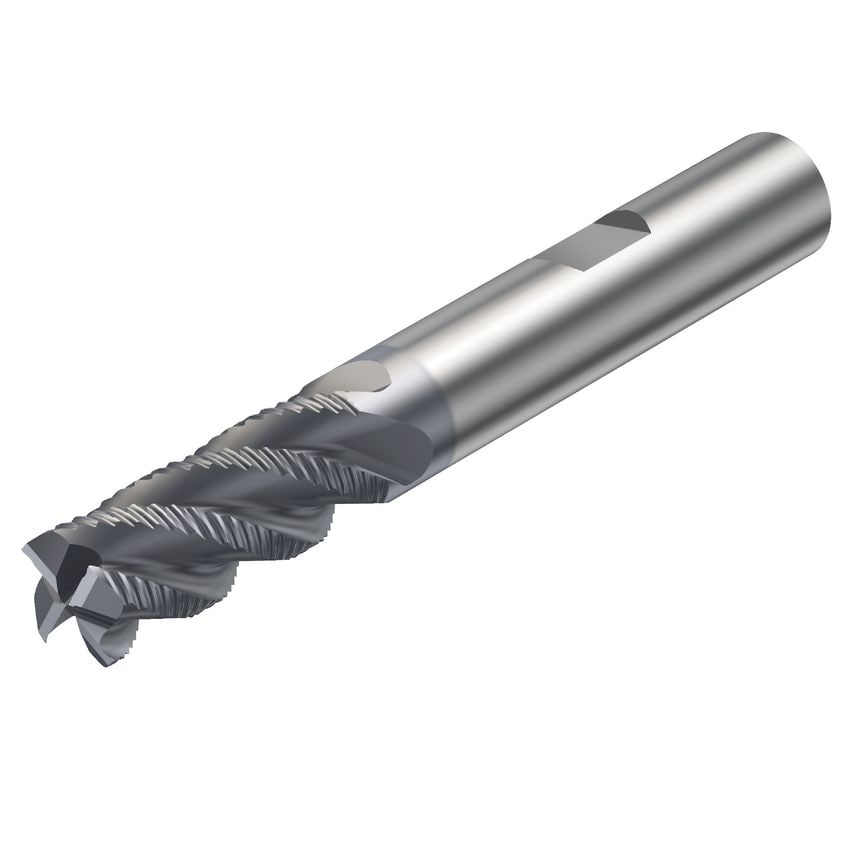

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

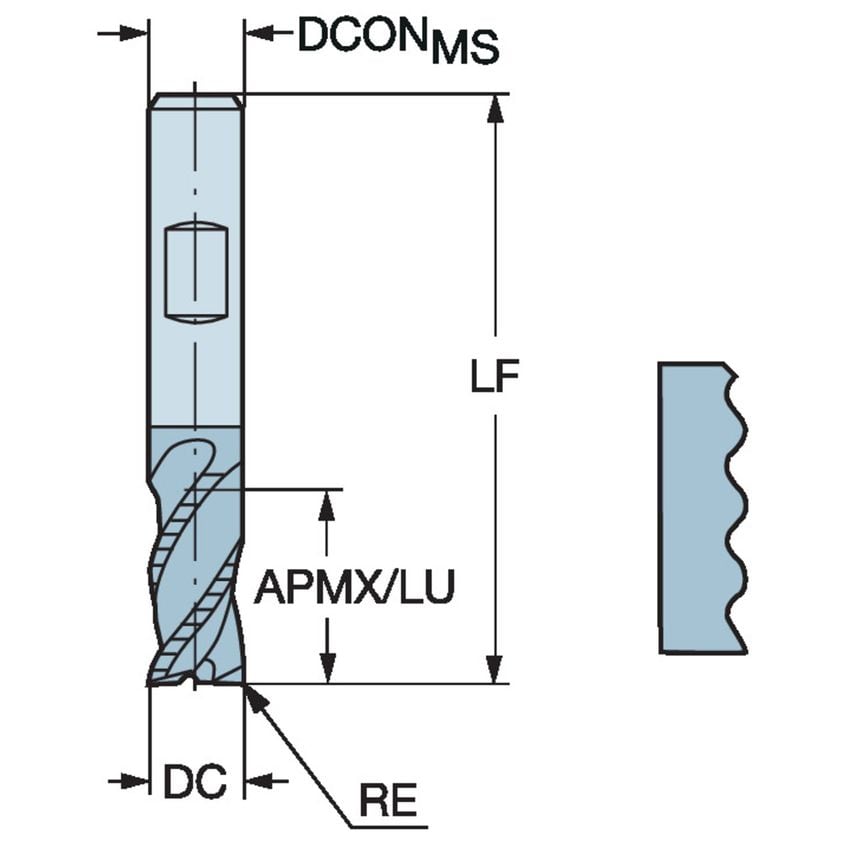

| Unit Measured | Metric |
| Functional Length | 83mm |
| Standards Met | DIN 6527 L |
| Through Hole Function Property | Yes |
| Milling Application | Roughing |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 26mm |
| Corner Radius | 0.4mm |
| Cutting Diameter | 12mm |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 5743330 |
| Basic Standard Group | DIN 6527 L |
| CoroPak | 3.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 26mm |
| Connection Diameter | 12mm |
| Material | Solid Carbide |
| Maximum Depth of Cut | 26mm |
| Coolant Entry Style | Without Coolant |
| Grade | 1640 |
| Coating Type | TiAlN |
| Weight | 0.13kg |
| Coating Process Type | PVD |
