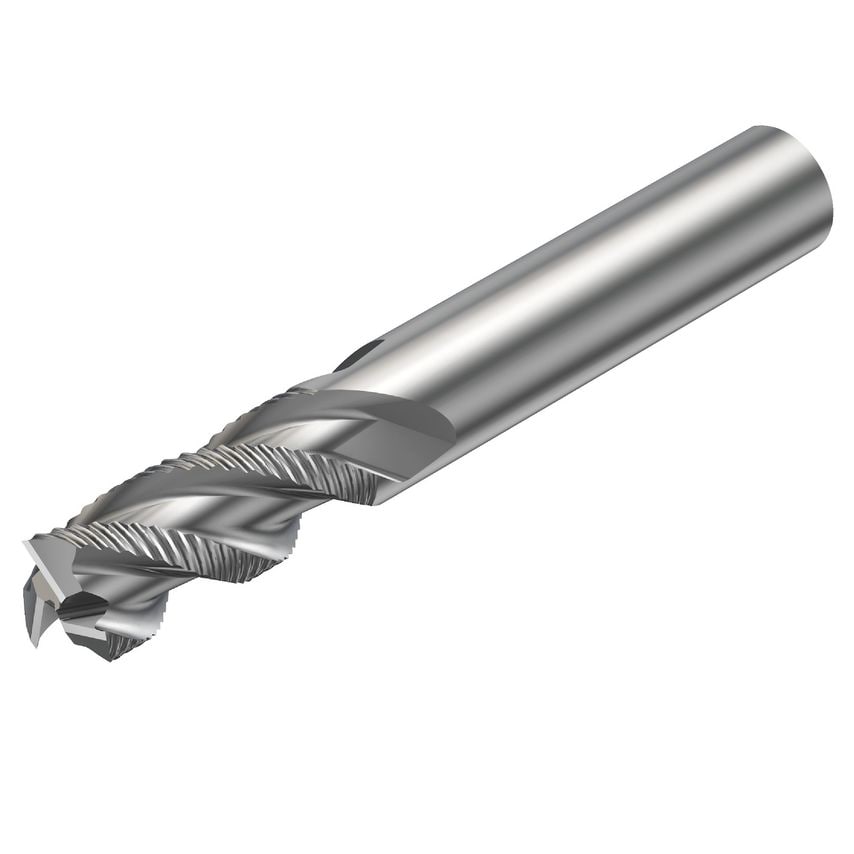

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Carbide |
| Connection Diameter | 3mm |
| Basic Standard Group | DIN 6527 L |
| Milling Application | Roughing |
| Coating Process Type | Uncoated |
| Through Hole Function Property | Yes |
| Functional Length | 104mm |
| Maximum Ramping Angle | 15\u00b0 |
| Coating Type | Uncoated |
| Maximum Cutting Depth | 38mm |
| ISO Cutting Tool Material | Uncoated WC |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Grade | H10F |
| Cutting Diameter | 20mm |
| Weight | 0.39kg |
| Maximum Depth of Cut | 38mm |
| Usable Length | 38mm |
| Unit Measured | Metric |
| CoroPak | 1.1 |
| Standards Met | DIN6535 |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 5743654 |
