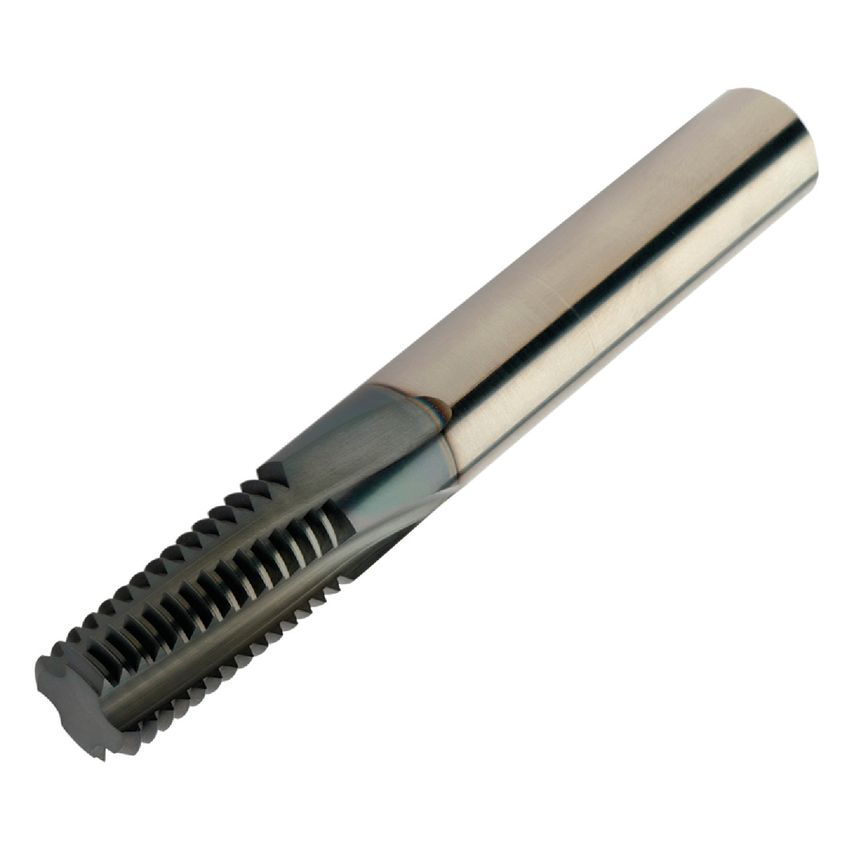

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Shank Type | Cylindrical |
| Connection Diameter | 101.6mm |
| Grade | 1630 |
| Usable Length | 21mm |
| CoroPak | 4.2 |
| Functional Length | 72mm |
| Thread Form Type | M60 |
| Maximum Cutting Depth | 21mm |
| Coating Type | TiAlN |
| Cutting Diameter | 7.5mm |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Thread Type | Internal |
| Standards Met | COROMANT |
| Maximum Depth of Cut | 21mm |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Maximum Cutting Diameter | 7.5mm |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 5743824 |
| Thread Pitch | 1.5mm |
