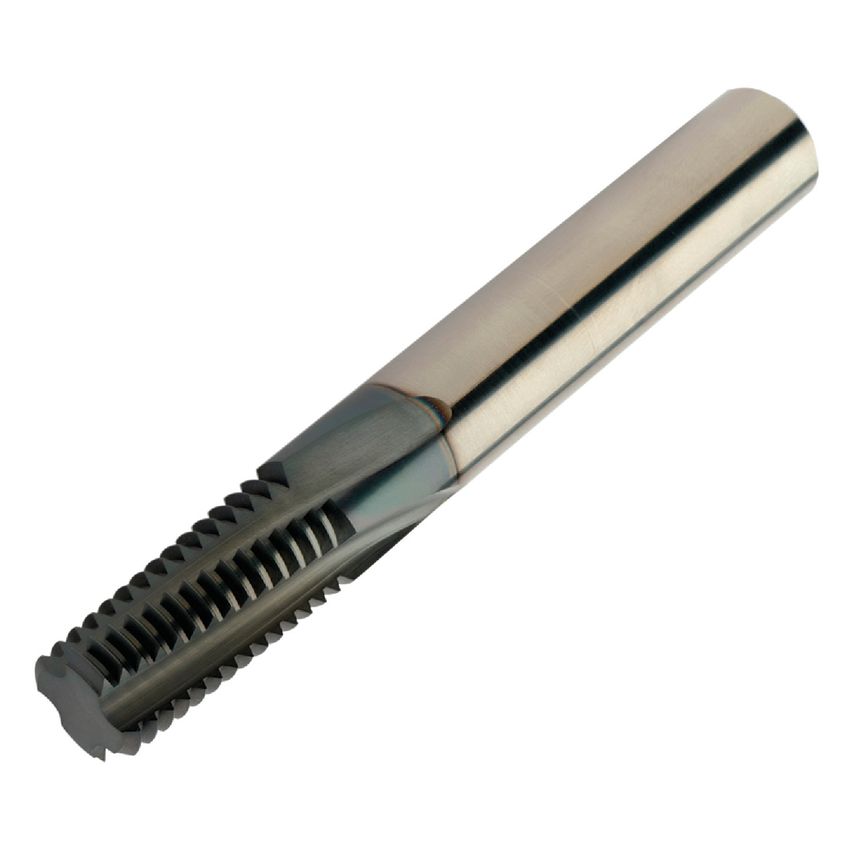

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Diameter | 10mm |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | TiAlN |
| Thread Type | Internal |
| Shank Type | Cylindrical |
| Material | Solid Carbide |
| Coolant Entry Style | 1 |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |

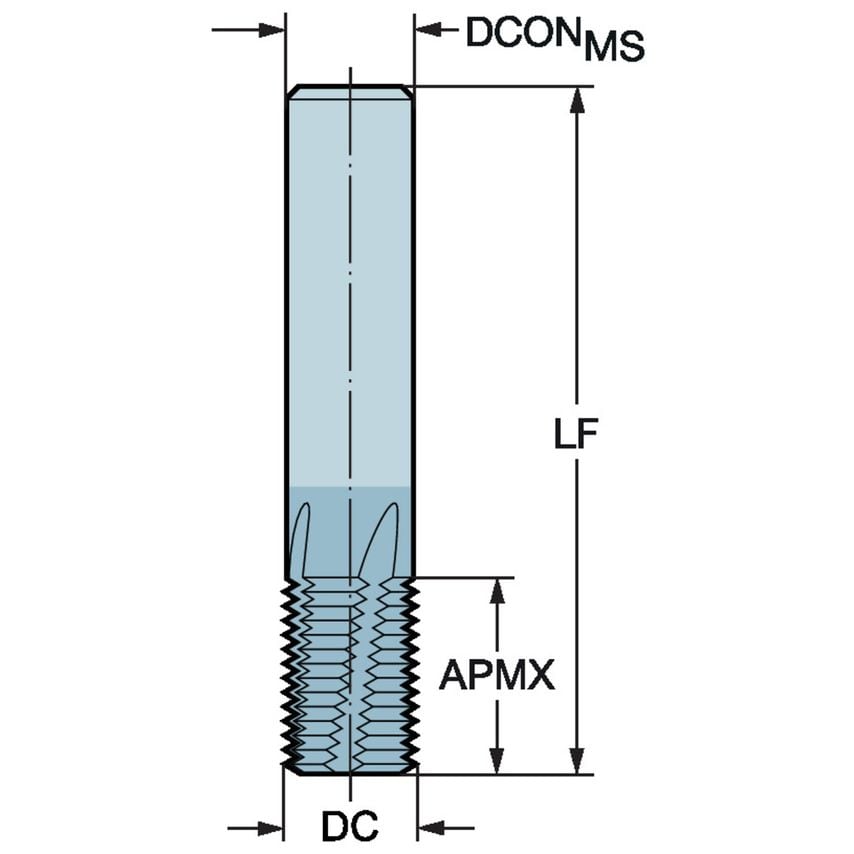

| Functional Length | 72mm |
| Usable Length | 21.16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 21.16mm |
| Maximum Cutting Depth | 21.16mm |
| Connection Diameter | 10mm |
| CoroPak | 5.2 |
| Cutting Diameter | 10mm |
| Coating Process Type | PVD |
| Basic Standard Group | Coromant |
| Grade | 1630 |
| Thread Form Type | UN60 |
| Unit Measured | Imperial |
| Threads Per Inch | 12 |
| MFR Part No. | 5743835 |
