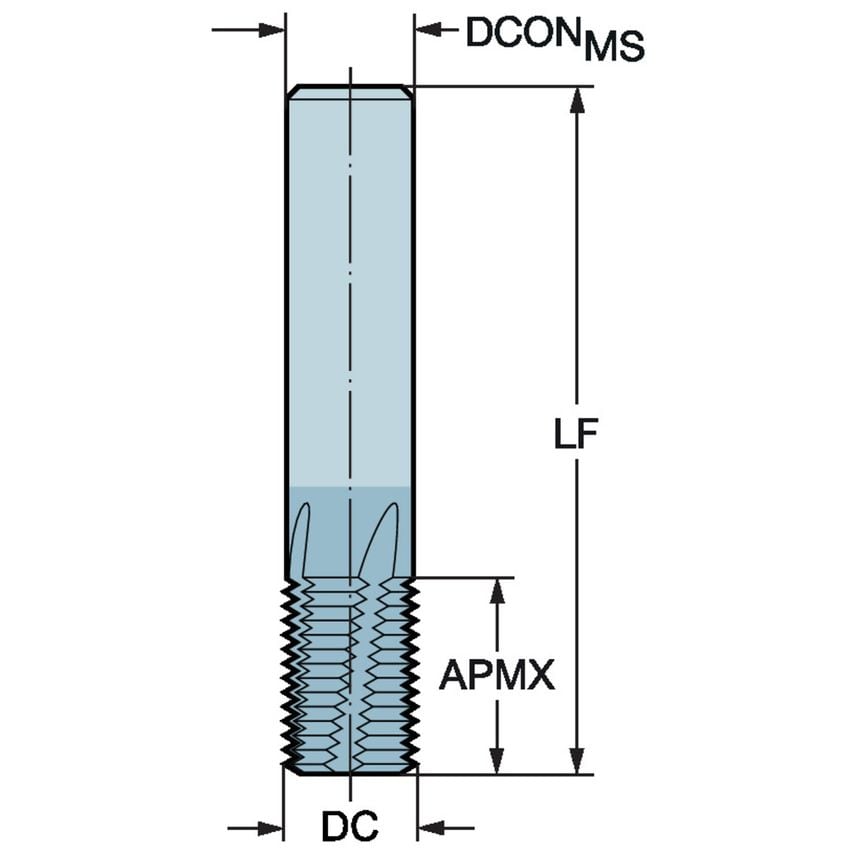

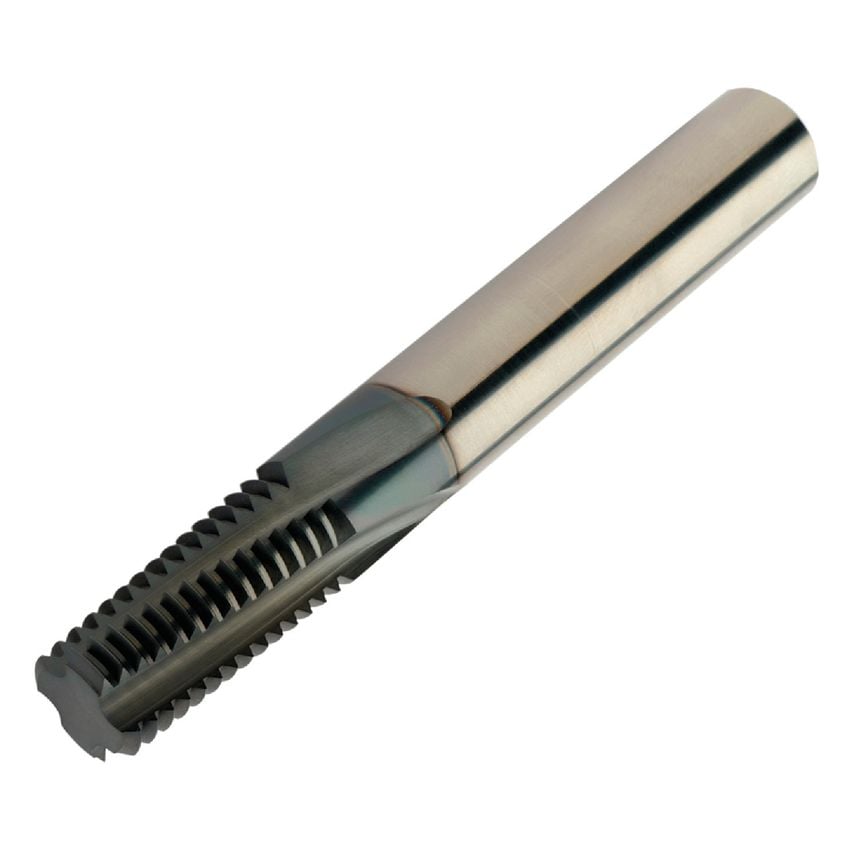

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | 1 |
| Usable Length | 19.05mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 19.05mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Thread Type | Internal |
| Threads Per Inch | 20 |
| Grade | 1630 |
| Unit Measured | Imperial |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| CoroPak | 5.2 |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 19.05mm |
| Maximum Cutting Diameter | 8mm |
| Shank Type | Cylindrical |
| Connection Diameter | 8mm |
| MFR Part No. | 5743832 |
| Coating Type | TiAlN |
| Cutting Diameter | 8mm |
| Thread Form Type | UN60 |
| Functional Length | 63mm |
| Material | Solid Carbide |
