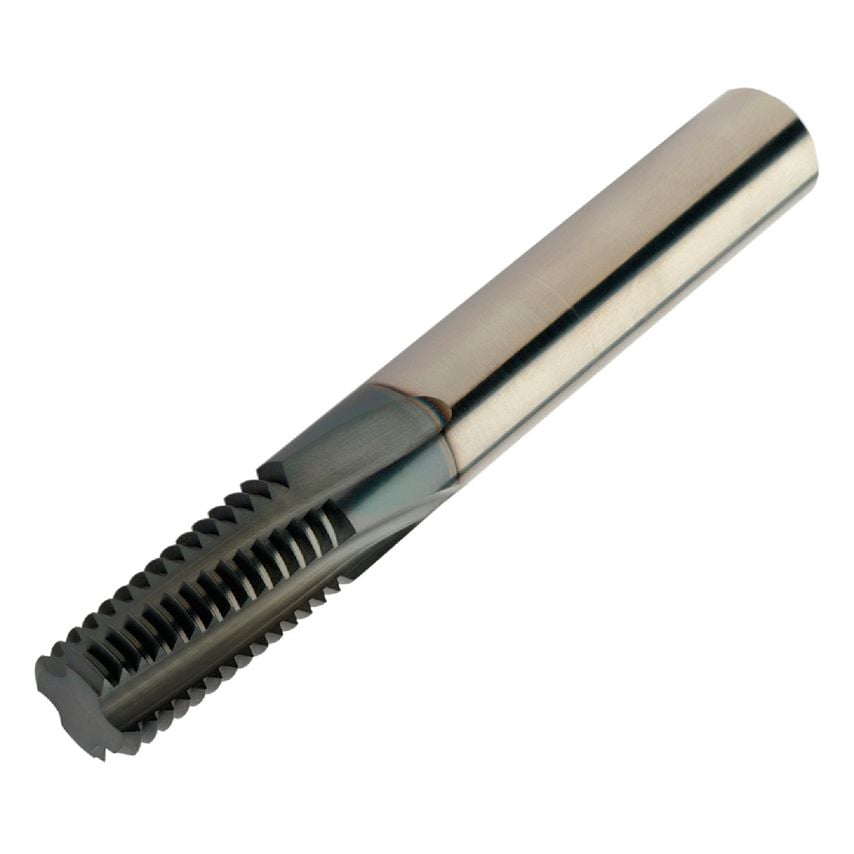

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| CoroPak | 5.2 |
| Basic Standard Group | Coromant |
| Coolant Entry Style | 1 |
| Maximum Depth of Cut | 19.95mm |
| Thread Type | Internal |
| Coating Process Type | PVD |
| Coating Type | TiAlN |

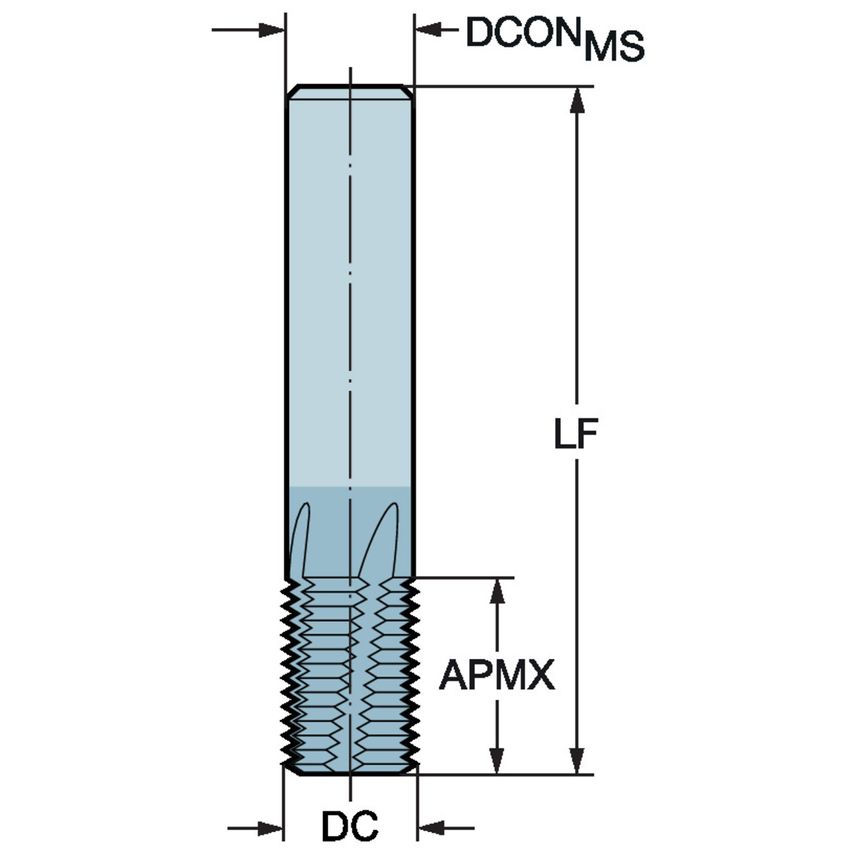

| Connection Diameter | 8mm |
| Grade | 1630 |
| Cutting Diameter | 8mm |
| Rotational Speed Maximum | 80000 1/min |
| Threads Per Inch | 14 |
| Maximum Cutting Depth | 19.95mm |
| Maximum Cutting Diameter | 8mm |
| Shank Type | Cylindrical |
| Usable Length | 19.95mm |
| Material | Solid Carbide |
| MFR Part No. | 5743830 |
| Thread Form Type | UN60 |
| Functional Length | 63mm |
| Standards Met | COROMANT |
