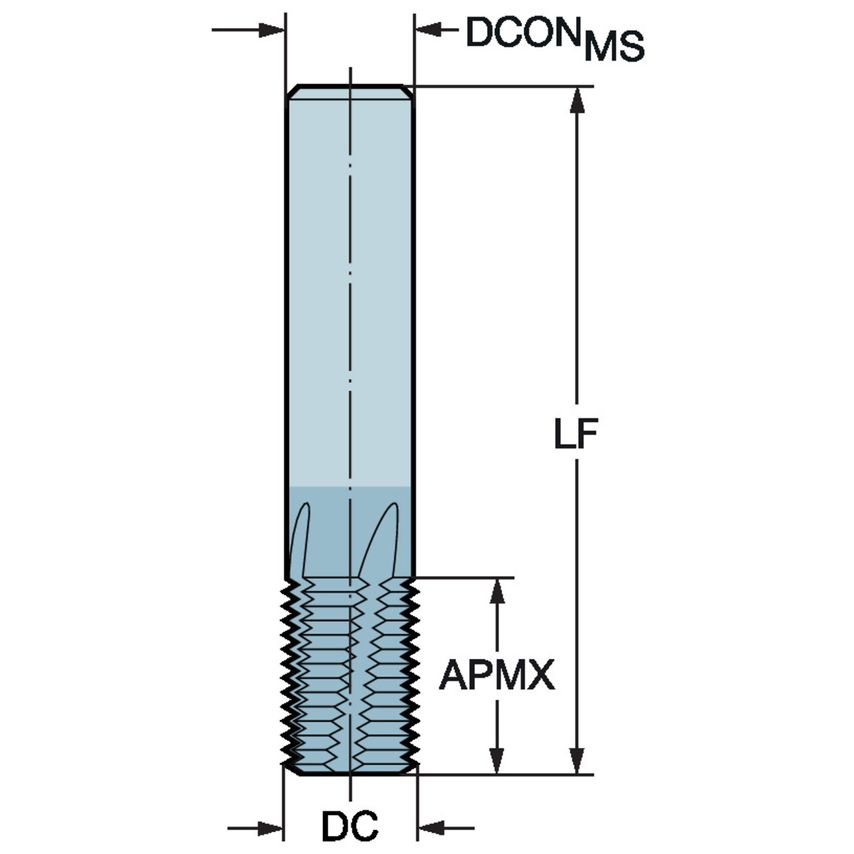

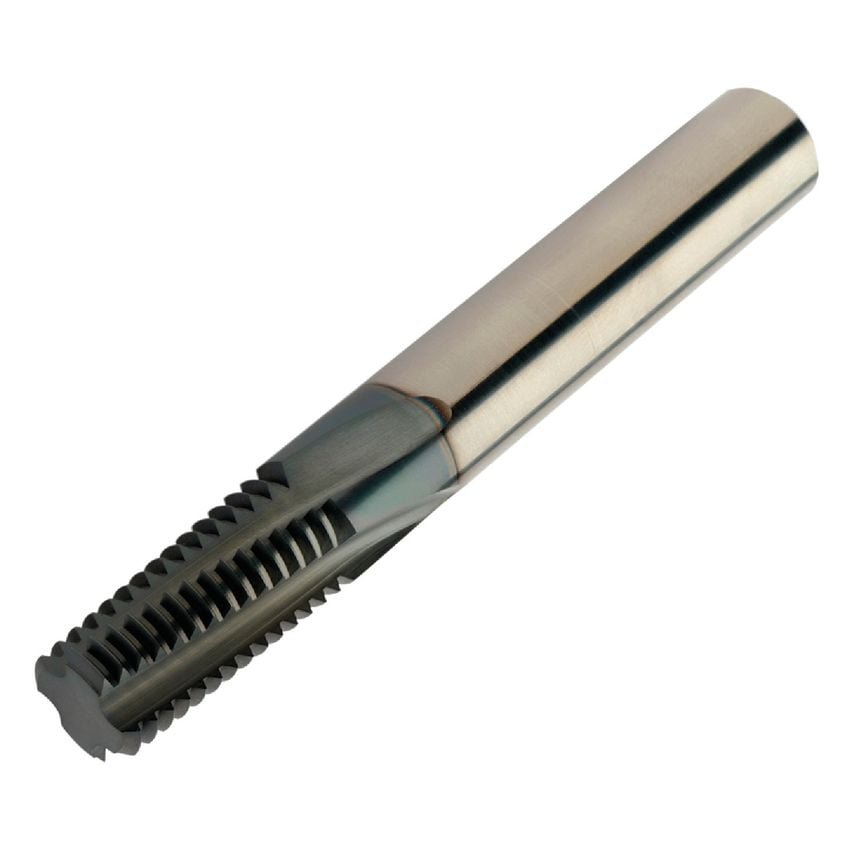

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Standards Met | COROMANT |
| Functional Length | 83mm |
| Coating Process Type | PVD |
| Thread Form Type | UN60 |
| Cutting Diameter | 40mm |
| Material | Solid Carbide |
| Coolant Entry Style | 1 |
| Maximum Cutting Diameter | 14mm |
| Maximum Cutting Depth | 31.75mm |
| Unit Measured | Imperial |
| Maximum Depth of Cut | 31.75mm |
| Threads Per Inch | 16 |
| Grade | 1630 |
| Thread Type | Internal |
| Connection Diameter | 40mm |
| Shank Type | Cylindrical |
| Weight | 0.17kg |
| MFR Part No. | 5743847 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| CoroPak | 80 |
| Usable Length | 31.75mm |
| Basic Standard Group | Coromant |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
