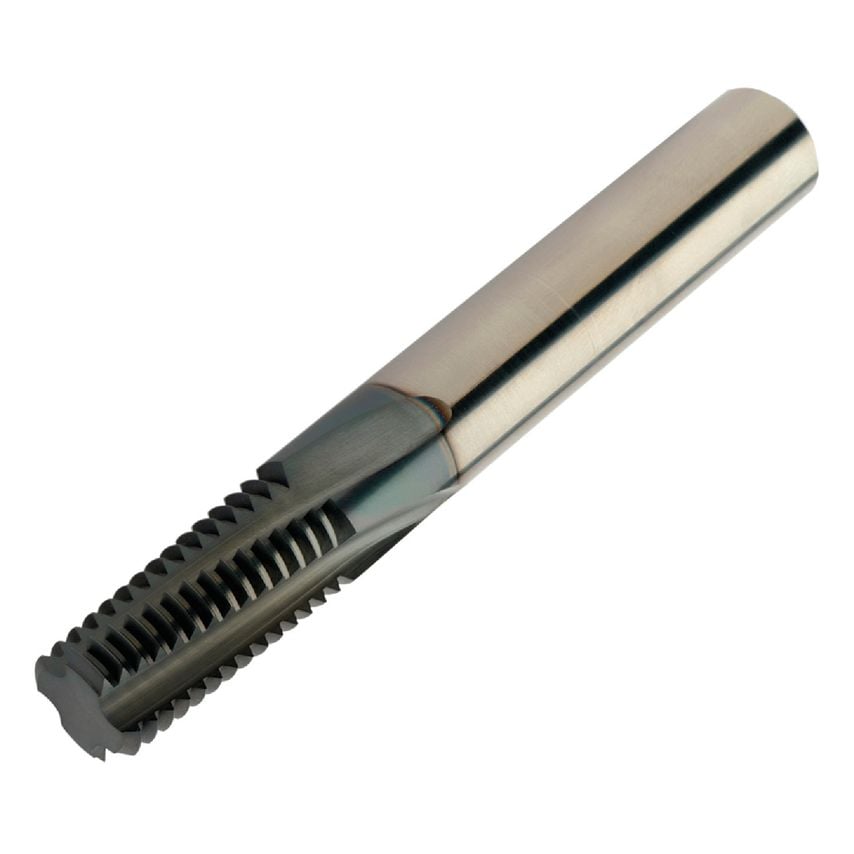

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

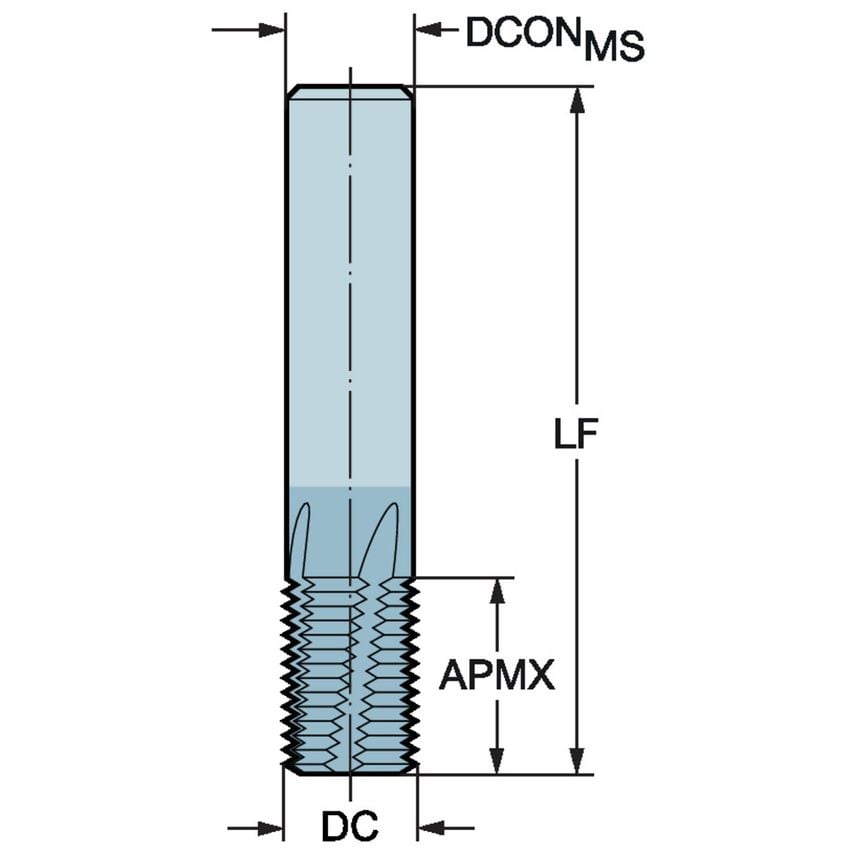

| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 4.8mm |
| Unit Measured | Imperial |
| Coolant Entry Style | 1 |
| Coating Type | TiAlN |
| Functional Length | 57mm |
| Maximum Depth of Cut | 13.61mm |
| Connection Diameter | 6mm |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 13.61mm |
| MFR Part No. | 5743871 |
| CoroPak | 5.2 |
| Grade | 1630 |
| Through Hole Function Property | Yes |
| Threads Per Inch | 28 |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Usable Length | 13.61mm |
| Thread Form Type | UN60 |
| Maximum Cutting Diameter | 4.8mm |
| Thread Type | Internal |
| Shank Type | Cylindrical |
