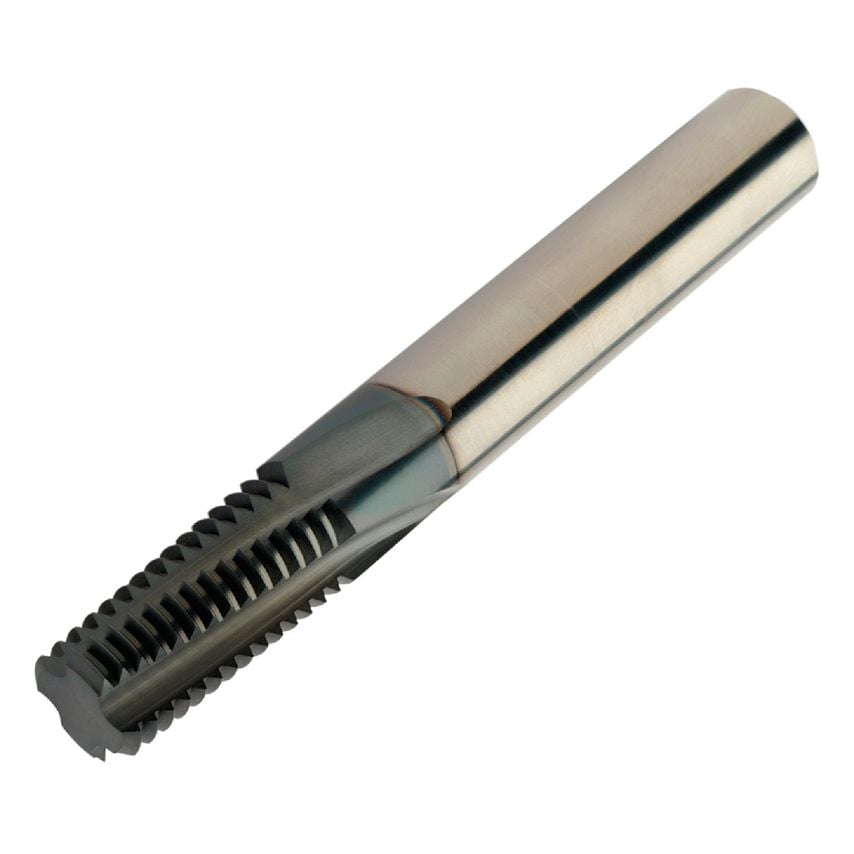

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Standards Met | COROMANT |
| Maximum Cutting Diameter | 14mm |
| Basic Standard Group | Coromant |
| Threads Per Inch | 10 |
| Thread Form Type | UN60 |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 33.02mm |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.16kg |
| CoroPak | 80 |
| Grade | 1630 |
| Thread Type | Internal |
| Connection Diameter | 40mm |
| Coating Process Type | PVD |
| Usable Length | 33.02mm |
| Coating Type | TiAlN |
| Cutting Diameter | 40mm |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Functional Length | 83mm |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 5743843 |
| Maximum Cutting Depth | 33.02mm |
