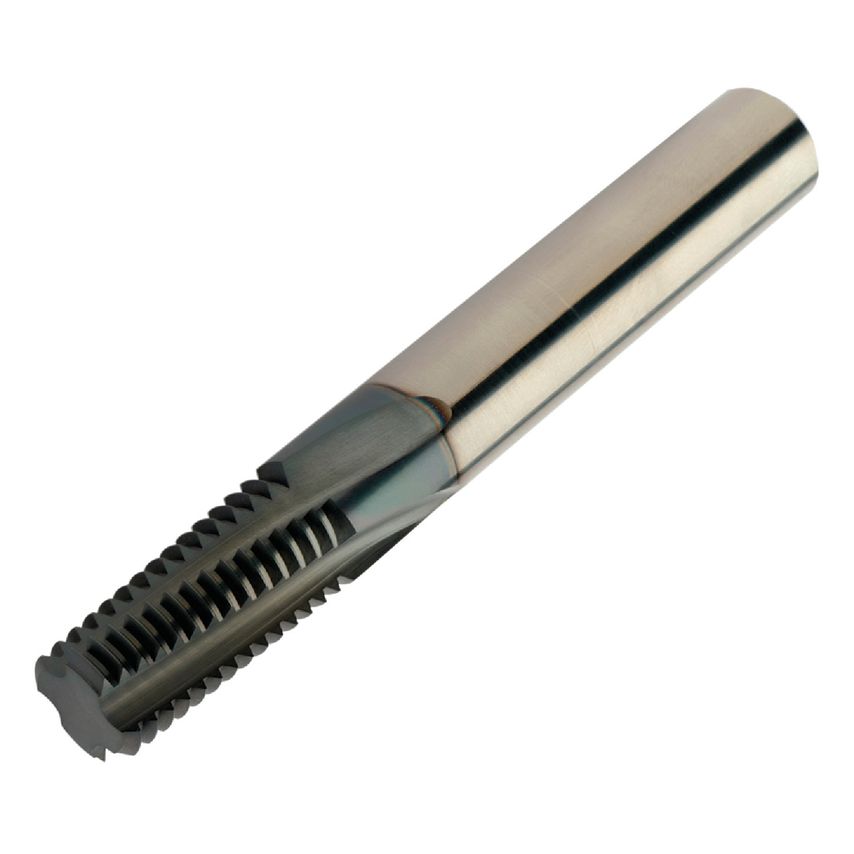

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

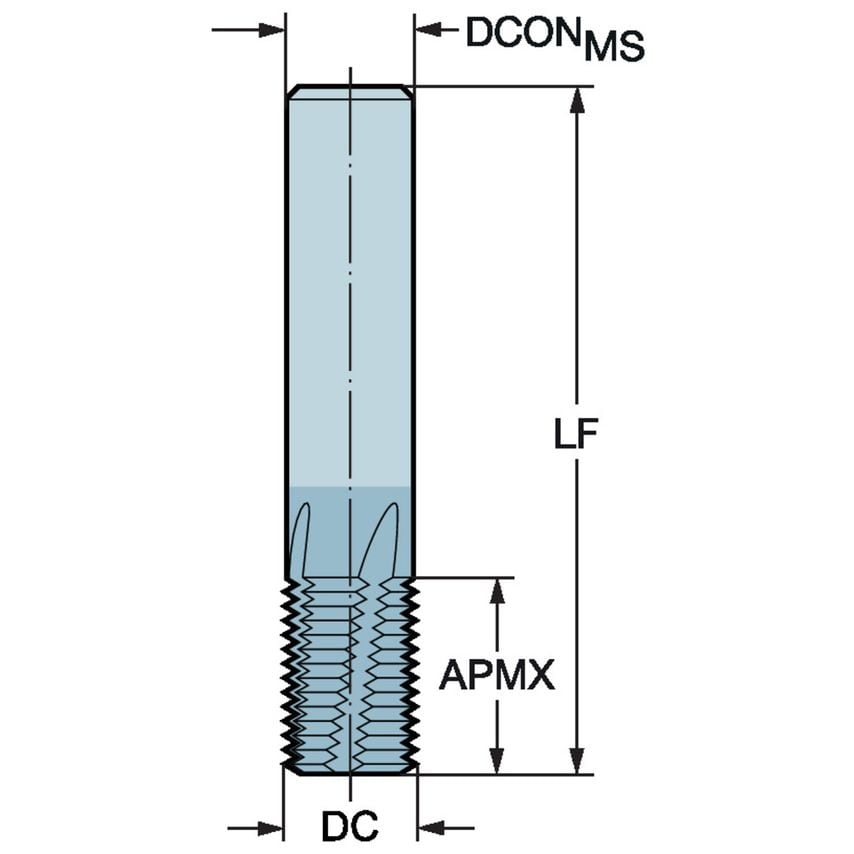

| Connection Diameter | 14.63mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 14mm |
| Coolant Entry Style | 1 |
| MFR Part No. | 5743868 |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Grade | 1630 |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| Threads Per Inch | 20 |
| Usable Length | 14mm |
| Maximum Cutting Diameter | 4.8mm |
| Maximum Depth of Cut | 14mm |
| Thread Form Type | UN60 |
| Unit Measured | Imperial |
| Functional Length | 57mm |
| Thread Type | Internal |
| Cutting Diameter | 4.8mm |
| CoroPak | 5.2 |
