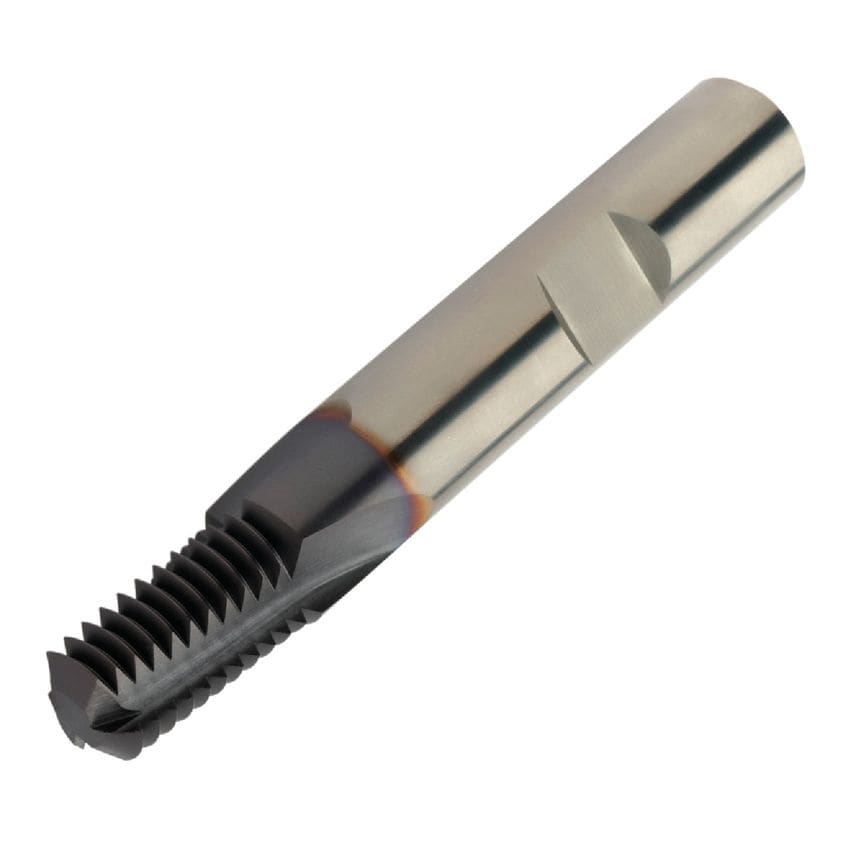

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 80000 1/min |
| Tool Cutting Edge Angle | 45\u00b0 |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 20.46mm |
| CoroPak | 80 |
| Usable Length | 20.46mm |
| Maximum Depth of Cut | 20.46mm |
| Weight | 0.23kg |
| Maximum Cutting Depth | 20.46mm |
| MFR Part No. | 5743913 |
| Cutting Diameter | 7.95mm |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| Grade | 1630 |
| Maximum Cutting Diameter | 15mm |
| Coating Process Type | PVD |
| Connection Diameter | 50mm |
| Shank Type | Weldon |
| Threads Per Inch | 14 |
| Thread Form Type | NPT60 |
| Coating Type | TiAlN |
| Thread Type | Internal |
| Through Hole Function Property | Yes |
