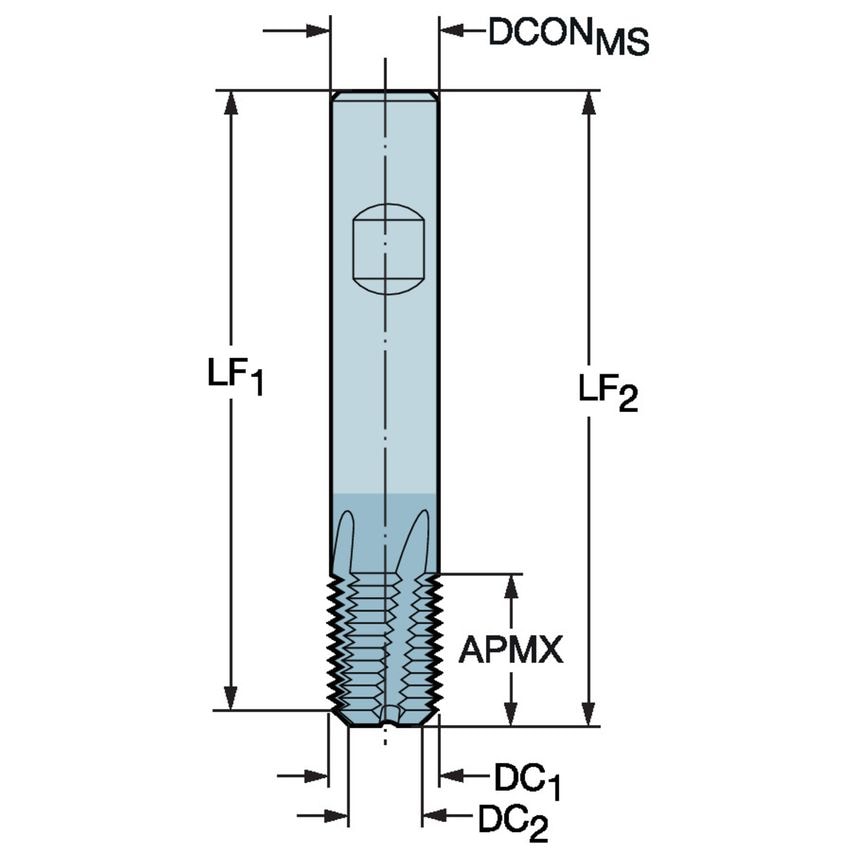

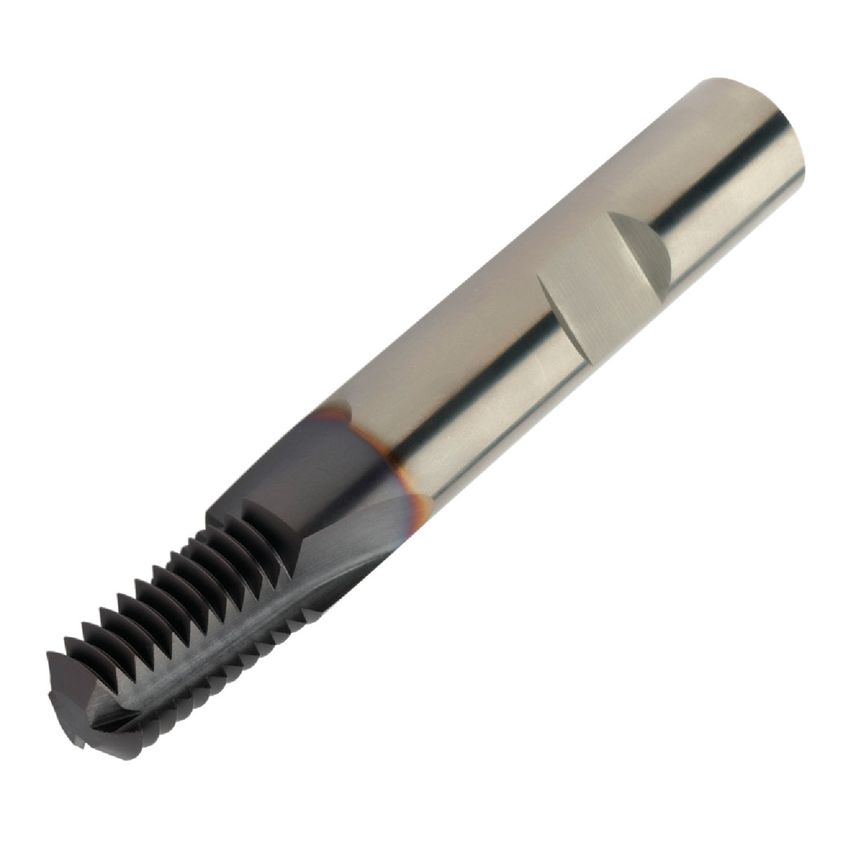

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Weight | 0.38kg |
| Unit Measured | Imperial |
| Thread Form Type | NPT60 |
| CoroPak | 80 |
| Connection Diameter | 3mm |
| Grade | 1630 |
| Thread Type | Internal |
| Maximum Cutting Depth | 27.12mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Diameter | 19mm |
| Cutting Diameter | 9.8mm |
| Shank Type | Weldon |
| Functional Length | 27.12mm |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Threads Per Inch | 11.5 |
| Through Hole Function Property | Yes |
| MFR Part No. | 5743914 |
| Tool Cutting Edge Angle | 45\u00b0 |
| Maximum Depth of Cut | 27.12mm |
| Usable Length | 27.12mm |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | TiAlN |
