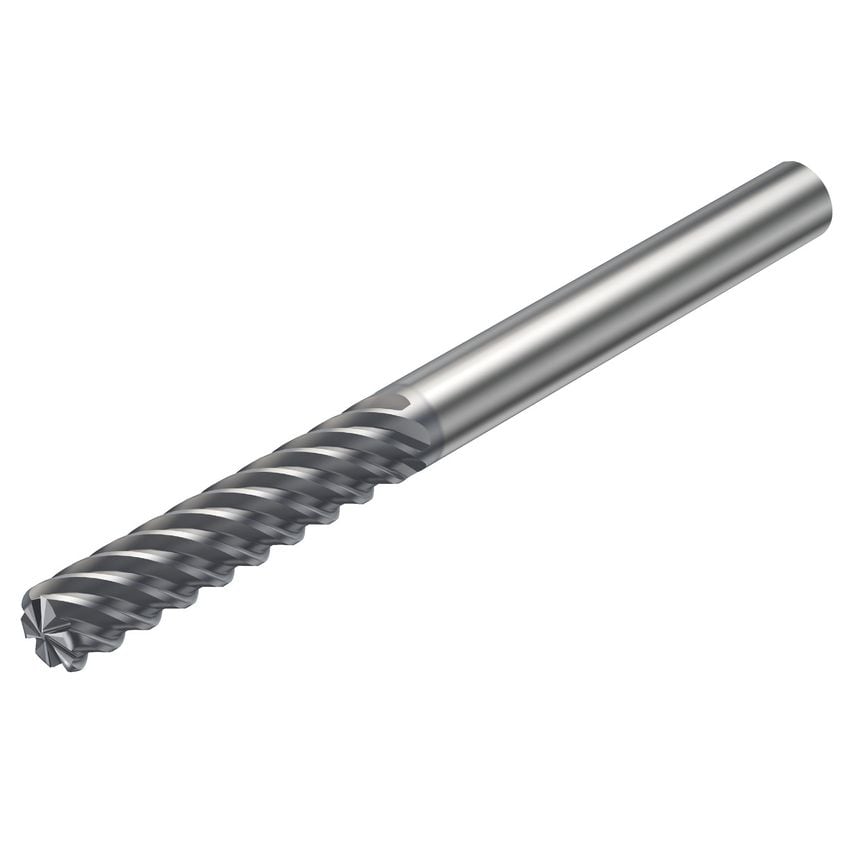

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Grade | 1620 |
| Center Cutting Capability | No |
| Usable Length | 14.288mm |
| Product Type | End Mills |
| Corner Radius | 0.397mm |
| MFR Part No. | 5739922 |
| Standards Met | COROMANT |
| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| Milling Application | Finishing |
| Coating Process Type | PVD |
| Cutting Diameter | 4.763mm |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| CoroPak | 3.1 |
| Functional Length | 76.2mm |
| Unit Measured | Imperial |
| Weight | 43.2g |
| Maximum Cutting Depth | 14.5mm |
| Maximum Depth of Cut | 14.5mm |
| Maximum Ramping Angle | 3\u00b0 |
| Connection Diameter | 6.35mm |
| Rotational Speed Maximum | 80000 1/min |
