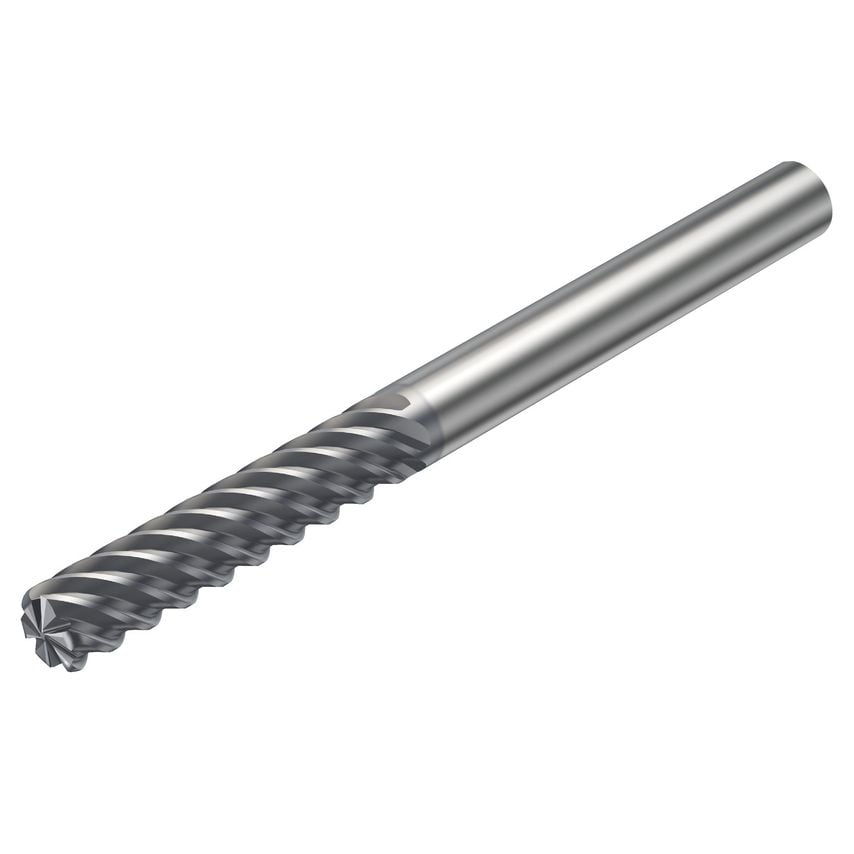

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlN |
| Center Cutting Capability | No |
| Maximum Cutting Depth | 7.14mm |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1620 |
| Functional Length | 76.2mm |
| Cutting Diameter | 2.38mm |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 6.35mm |
| Milling Application | Finishing |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 0.794mm |
| CoroPak | 3.1 |
| Product Type | End Mills |
| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Usable Length | 7.144mm |
| Unit Measured | Imperial |
| MFR Part No. | 5739959 |
| Maximum Depth of Cut | 7.14mm |
