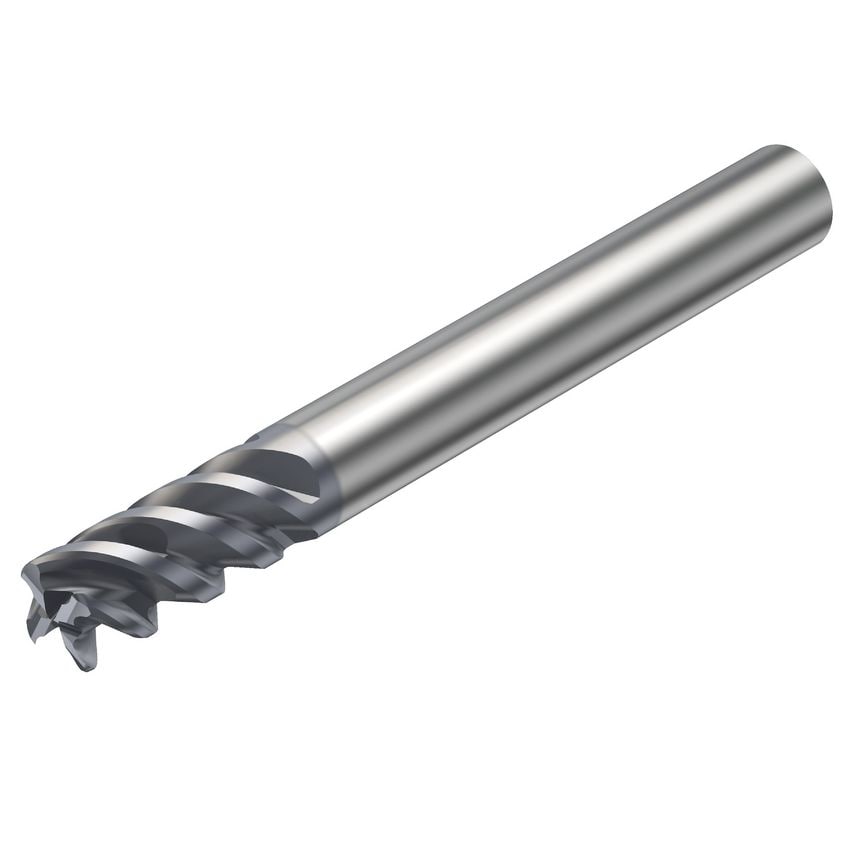

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Grade | 1620 |
| Usable Length | 25.4mm |
| Maximum Cutting Depth | 25.4mm |

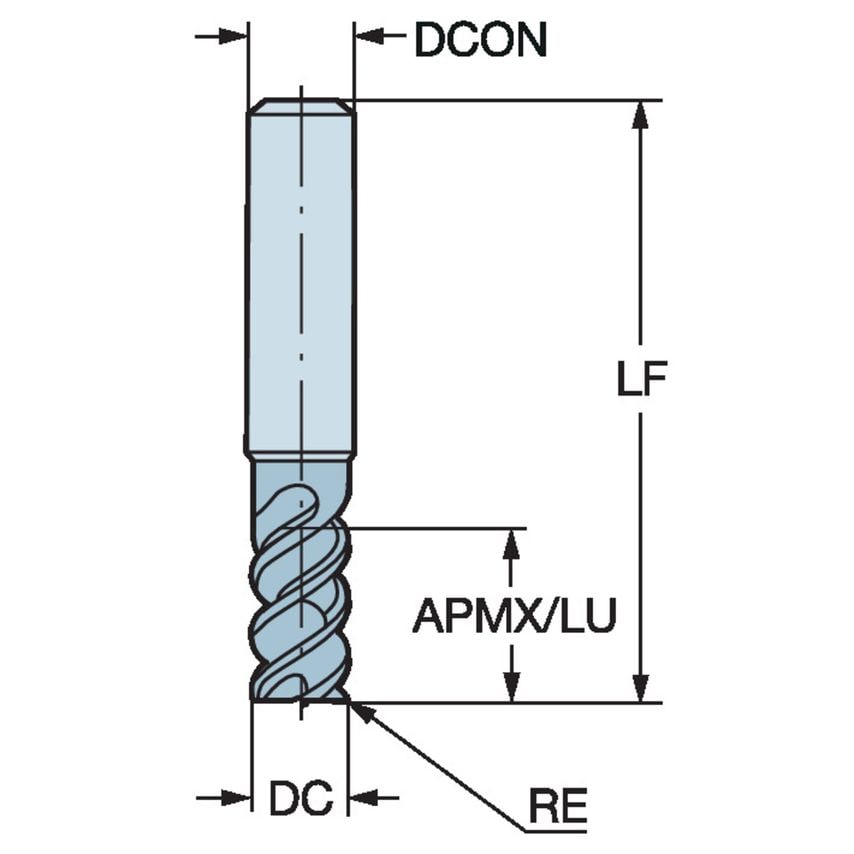

| Connection Diameter | 11mm |
| Cutting Diameter | 12.7mm |
| Shank Type | Cylindrical |
| MFR Part No. | 5739968 |
| CoroPak | 3.1 |
| Maximum Ramping Angle | 5\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 25.4mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | COROMANT |
| Functional Length | 101.6mm |
| Corner Radius | 0.794mm |
| Unit Measured | Imperial |
| Center Cutting Capability | Yes |
| Weight | 0.19kg |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Product Type | Solid Carbide Endmill |
