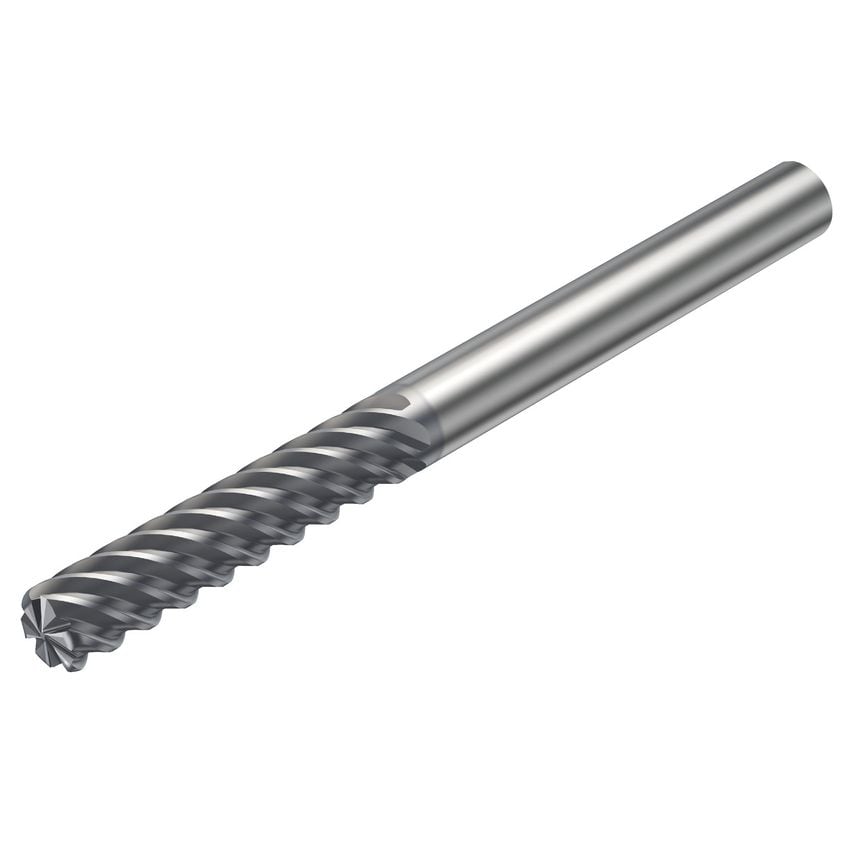

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 76.2mm |
| Milling Application | Finishing |
| Center Cutting Capability | No |
| CoroPak | 3.1 |
| Usable Length | 12.7mm |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 12.7mm |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1620 |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Cutting Diameter | 3.969mm |
| Standards Met | COROMANT |
| MFR Part No. | 5739977 |
| Coating Type | TiAlN |
| Corner Radius | 0.794mm |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | Coromant |
| Connection Diameter | 6.35mm |
| Maximum Cutting Depth | 12.7mm |
| Product Type | End Mills |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
