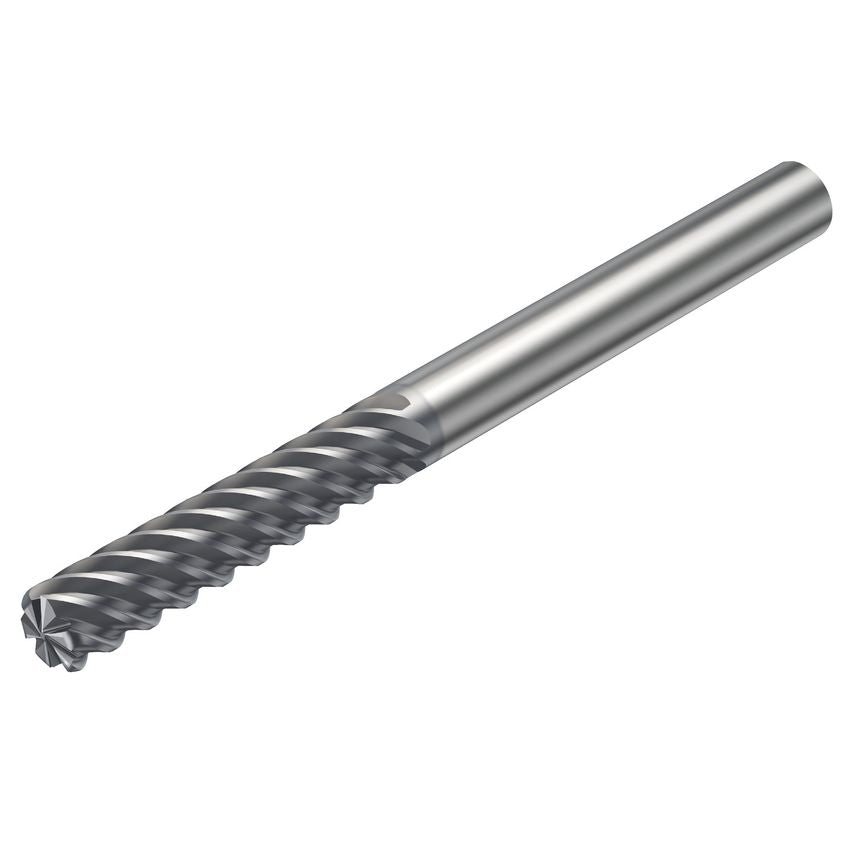

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Milling Application | Finishing |
| CoroPak | 3.1 |
| Grade | 1620 |
| Maximum Cutting Depth | 9.53mm |
| Standards Met | COROMANT |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | No |
| Unit Measured | Imperial |
| Functional Length | 76.2mm |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 9.53mm |
| Usable Length | 9.525mm |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 3.175mm |
| Product Type | End Mills |
| Corner Radius | 0.794mm |
| Basic Standard Group | Coromant |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| MFR Part No. | 5739969 |
| Connection Diameter | 6.35mm |
