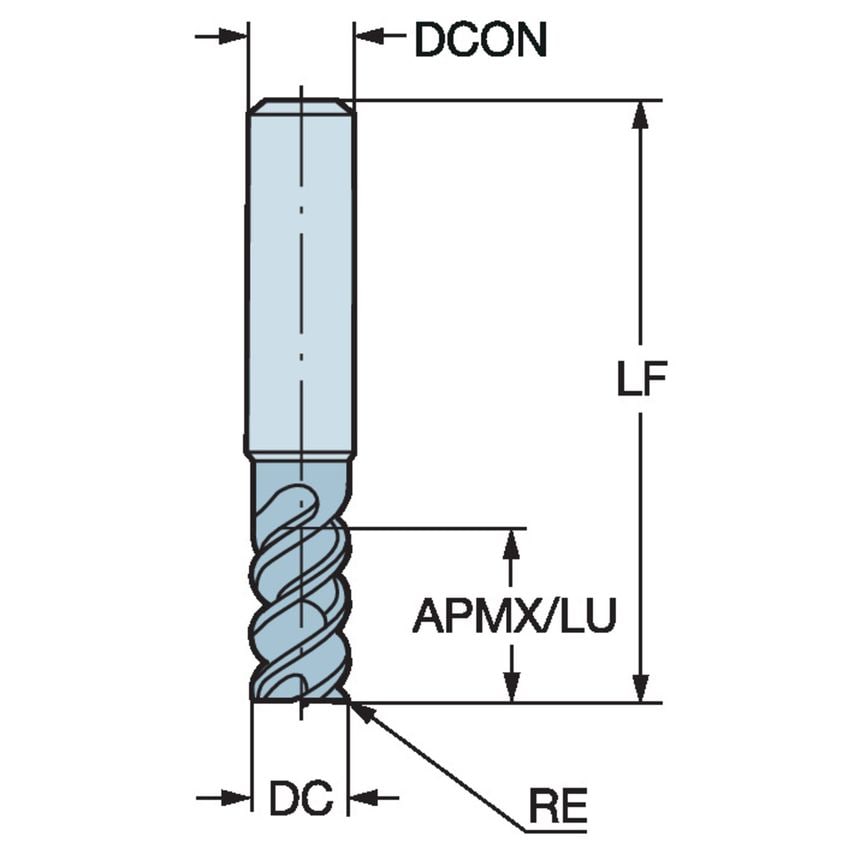

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 3.1 |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 8\u00b0 |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| MFR Part No. | 5740195 |
| Standards Met | COROMANT |
| Connection Diameter | 10mm |
| Grade | 1620 |
| Coating Process Type | PVD |
| Usable Length | 14.2748mm |
| Basic Standard Group | Coromant |
| Maximum Cutting Depth | 14.27mm |
| Cutting Diameter | 4.76mm |
| Material | Solid Carbide |
| Maximum Depth of Cut | 14.27mm |
| Shank Type | Cylindrical |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| Corner Radius | 0.794mm |
| Functional Length | 76.2mm |
