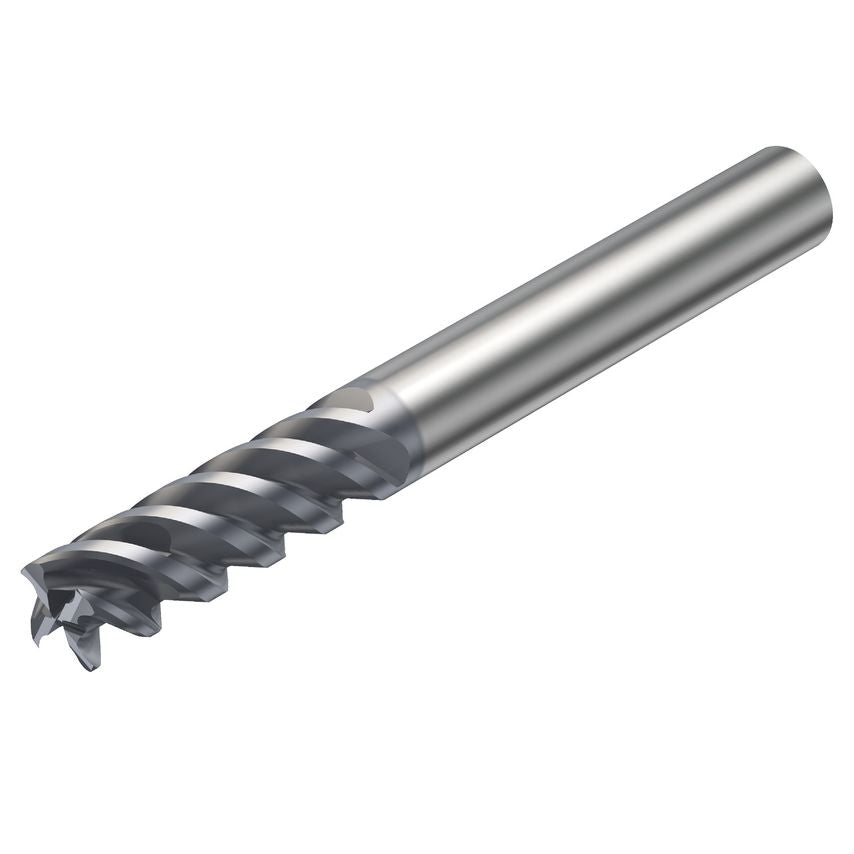

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 8\u00b0 |
| Product Type | Solid Carbide Endmill |
| Usable Length | 14.2748mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1620 |
| Maximum Cutting Depth | 14.27mm |
| CoroPak | 3.1 |

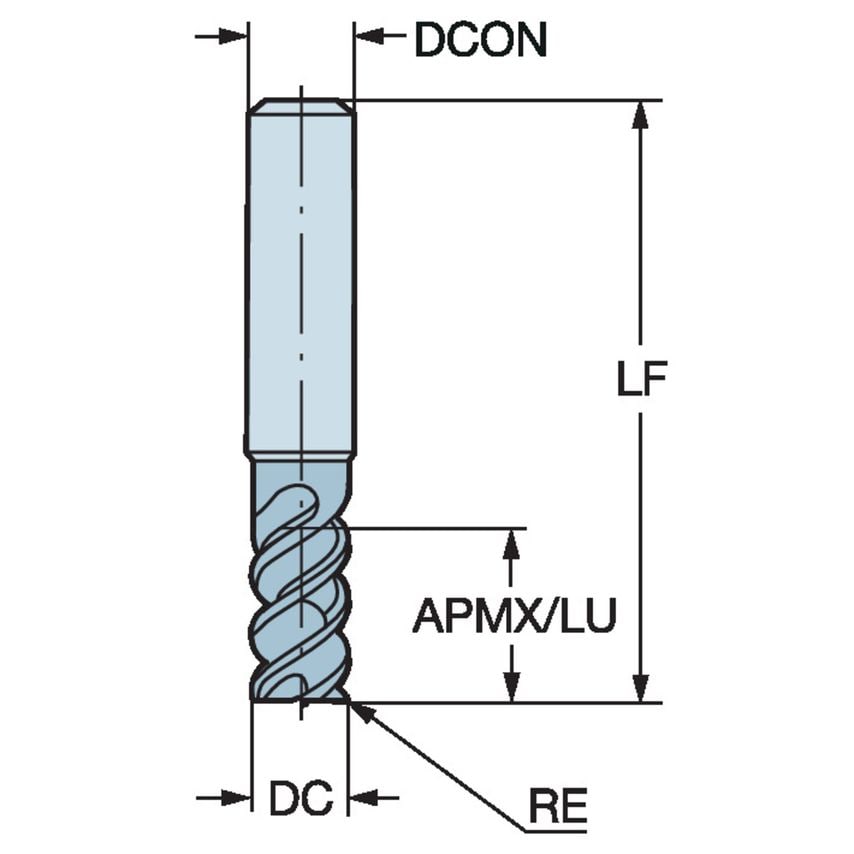

| Connection Diameter | 6.35mm |
| Corner Radius | 0.397mm |
| Material | Solid Carbide |
| MFR Part No. | 5740188 |
| Through Hole Function Property | Yes |
| Shank Type | Cylindrical |
| Standards Met | COROMANT |
| Cutting Diameter | 4.76mm |
| Coating Type | TiAlN |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 14.27mm |
| Center Cutting Capability | Yes |
| Functional Length | 76.2mm |
| Coolant Entry Style | Without Coolant |
