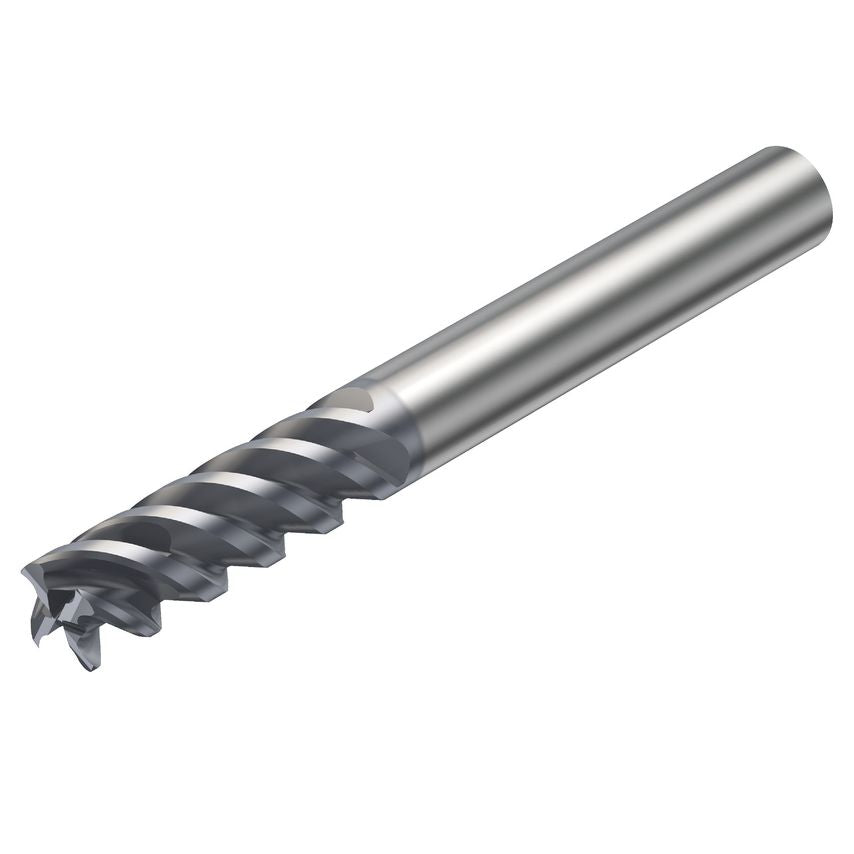

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

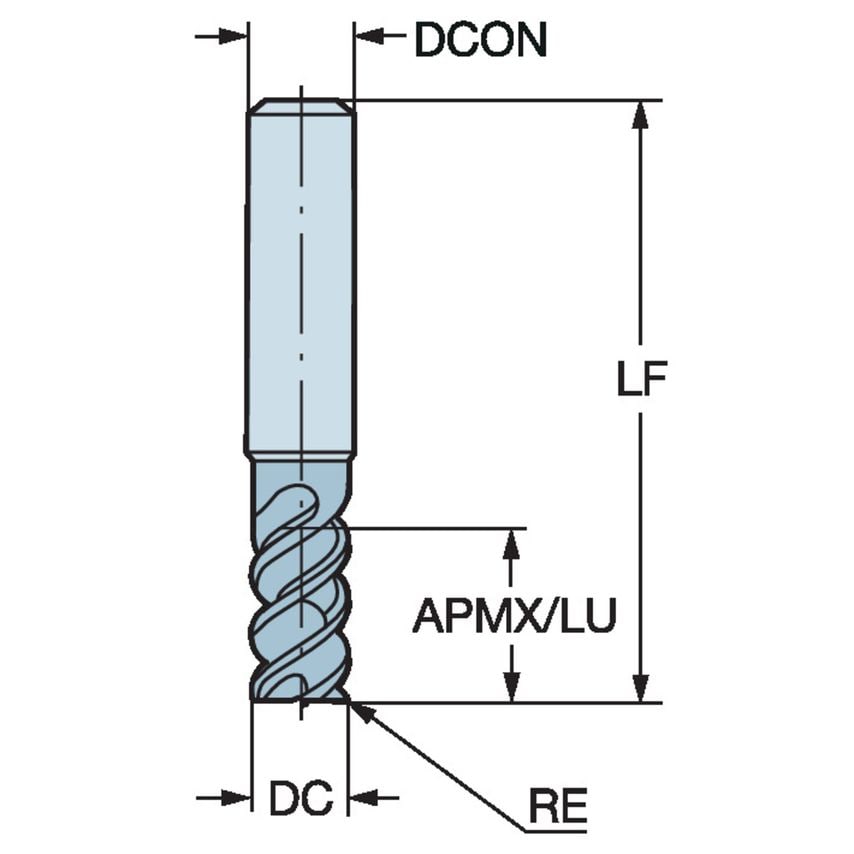

| Connection Diameter | 10mm |
| Product Type | Solid Carbide Endmill |
| Corner Radius | 0.397mm |
| Standards Met | COROMANT |
| Maximum Depth of Cut | 9.53mm |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1630 |
| CoroPak | 3.1 |
| Unit Measured | Imperial |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 9.53mm |
| Maximum Ramping Angle | 8\u00b0 |
| MFR Part No. | 5740184 |
| Cutting Diameter | 4.76mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 9.525mm |
| Functional Length | 76.2mm |
| Shank Type | Cylindrical |
